Home IP Cameras DWC-PVX16W, DWC-PVX16W2, DWC-PVX16W4

DWC-PVX16W, DWC-PVX16W2, DWC-PVX16W4

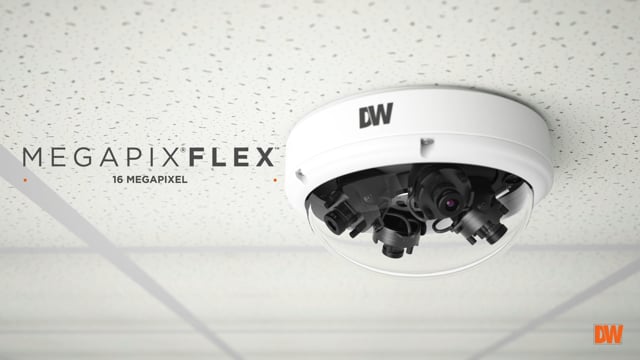

MEGApix Flex 16MP multi-sensor vandal dome IP camera with fixed lens options
Find a Reseller Request a Demo Contact Us FAQs
NDAA
Features
  • 16MP 1/3" image sensors at real-time 30fps
  • 360° and 180° flexible panoramic view IP camera
  • Available as a complete system with 4x 2.8mm or 4x 4.0mm lens modules or camera and other lens options sold separately.
  • Four cameras in one installation
  • Flexible sensor positioning with magnets
  • True wide dynamic range (WDR)
  • PoE injector included
  • Dual codecs (H.264, MJPEG) with simultaneous dual-stream
  • Two-way audio
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Motion detection
  • 4x Micro SD/SDHC/SDXC class 10 card (card not included)
  • Alarm sensor input
  • Relay output
    • Show More

Megapixel resolution in multi-sensor IP cameras

DW’s technology delivers crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera’s field of view.

Flex camera typical installations

Flex cameras can be personalized to match any application and any field of view (FoV) from a 180° panoramic view installation to a full 360° hemispheric FoV, all with a single camera and max flexibility.

Flexible sensor positioning with magnets

Users can easily place each of the four sensors independently in any configuration around the camera's magnetic base. Use one installation to monitor a hallway or to produce a 270° view at building corners and large rooms.

Easy 3-axis gimbal tilt and rotation

Each sensor has a 3-axis gimbal to fine-tune the Field of View (FoV) configuration, with endless 360° rotation and up to 60° tilting per sensor.

Specifications

Electrical
Electrical Power Consumption PoE: max 28W, 2.583A
Environmental
Compliance NDAA Compliance
UL Listing
CF
FCC
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -4°F ~ 158°F (-20°C ~ 70°C)
-22°F ~ 122°F (-30°C ~ 50°C)
I/O
Audio compression G.711
Audio frequency response 50Hz ~ 10KHz
Event triggers Temperature critical
I/O Alarm in/out 1 input
4 outputs
1 output
I/O Audio in/out 1 input
1 output
U-low (bi-directional)
Image sensor 4MP 1/2.8" CMOS sensor
4MP 1/3" CMOS sensor (x4)
Maximum resolution 16MP
Minimum Scene Illumination in color 0.369 lux (color)
0.41 lux (color)
Signal technology HD-TVI
Test Video Output Local video output CVBS 1.0V p-p (75Ω), 16:9 aspect ratio
CVBS video output for testing
4th channel 180° panoramic view
Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels 2016 (H) x 1108 (V)
4x 2688 (H) x 1520 (V)
Lens
Focal Length 2.8mm
2.8mm, 4.0mm, 6.0mm combinations (x4)
Horizontal Field of View (HFOV) 24°
39°
50.6° ~ 6.2°
51°
80.6°
81°
88°
90°
Lens Type Fixed Lens
Mechanical
Dimensions 4.66" x 3.58" (118.6 x 91 mm)
5.9" x 9.13" (150 x 232mm)
7.55" x 3.3" (192 x 84 mm)
Features Cleanview
Housing Vandal Dome
Panoramic
IK rating IK10 Rated
IP rating Weather Resistant (IP66)
Weather Resistant (IP68)
Materials Aluminum die-casting
Plastic
Main unit: Plastic
Weight 2.64 lbs (1.2 kg)
4.18 lbs (1.9kg)
4.40 lbs (2kg)
Operational
3D digital noise reduction 3D DNR
Auto gain control Auto
Day and night Auto day/nighy
Day (color)
Night (B/W)
De-fog Yes
Gamma 0.5
0.45 ~ 0.75
Intelligent Video Analytics IVA: intrusion, line crossing, counting line, loitering, enter, exit, tamper
Memory slot 4x Micro SD/SDHC/SDXC class 10 cards (cards not included)
Mirror/flip Yes
Motion Detection Yes
Operational features True D/N
Operational Notifications Email
FTP server
Alarm output activation
SD card recording
Privacy Zones 16 programmable privacy masks
24 programmable provacy zones
Shutter Mode Auto
Manual
Shutter Priority
Shutter Speed 1/15 ~ 1/32000
8 ~ 1/30000
8 ~ 1/50000
Slow Shutter Speed Off
x2
x3
x4
x5
x6
x7.5
x10
x15
Star-Light (sense up) Disabled at 4K
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
True WDR 100dB
D-WDR
General
Power Consumption DC12V: 12.4W, 1033mA
DC12V: max 18.0W, 1.5A
PoE: 14.9W
PoE: max 18.0W
Power Requirements 12 V DC
PoE
IEEE 802.3at PoE+ class 4
(High power PoE injector included)
Warranty 5 Year Warranty
Network
Bitrate Control Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
IP IPv4
IPv6
LAN RJ45 (10/100Base-T)
1000Base-T (1Gbps)
Network resolution H.264: 3072x1728/1080p/720p/640x360/512x288/384x216
MJPEG: 1280x720, 800x600, VGA, 768x432, D1, CIF
MJPEG: 2.1MP/1080p, 720p, 800x600, 768x432, 704x576, 480p, VGA, 640x360, CIF, SIF
Triple-stream at different rates and resolutions
Up to 10,752 (H) x 1520 (V) total pixels
Network Web Viewer Windows® OS
Mac® OS
Linux® OS
Internet Explorer® browser
Google Chrome® browser
Mozilla Firefox® browser
Protocol 802.1x
ARP
Bonjour
DDNS
DHCP
DNS
FTP
HTTP
HTTPs
ICMP
NTP
ONVIF
PPPoE
QoS
RTCP
RTP (UDP/TCP)
RTSP
SMTP
SNMPv1/v2/v3 (MIB-2)
SSL
Syslog
TCP/IP
Telnet
UDP
Zeroconf (AutoIP)
Security HTTPS (TLS)
IP filtering
MAC filtering
802.1x
Digest authemtication (ID/PW)
Multi-user authority
Stream Speed Up to 30fps at all resolutions
10fps at all resolutions
Video Bitrate 100Kbps~10Mbps, multi-rate for preview and recording
MJPEG: 1Mbps~40Mbps
Video Compression Type H.264
MJPEG
Video Management Software DW Spectrum® IPVMS
Any ONVIF conformant CMS

Part Numbers

The camera is available in two ways:
  1. Complete solution: DWC-VPX16W2, DWC-VPX16W4, DWC-VPX16W6 and DWC-PVX16W8. Includes 4 x 2.8mm, 4x 4.0mm, 4x 6.0mm or 4x 8.0mm fixed lens modules installed.
  2. Custom order: DWC-PVX16W base unit + your selection in any combination of 2.8mm, 4.0mm, 6.0mm or 8.0mm fixed lens modules. Mix lens modules to best fit your individual needs. For example, select 1-2.8mm, 2-6.0mm and 1-8.0mm. Base unit and lens modules sold separately.

Model #

Details

DWC-PVX16W2
Camera base + 4 x 2.8mm fixed lens modules, installed.
DWC-PVX16W4Camera base + 4 x 4.0mm fixed lens modules, installed.
DWC-PVX16W
Camera base. Lens sold separately. Please refer to the part numbers below.
DWC-PVXLMOD28

2.8mm fixed lens module. Must be purchased with DWC-PVX16W camera base.
DWC-PVXLMOD4

4.0mm fixed lens module. Must be purchased with DWC-PVX16W camera base.
DWC-PVXLMOD6

6.0mm fixed lens module. Must be purchased with DWC-PVX16W camera base.

DWC-PVXLMOD8

8.0mm fixed lens module. Must be purchased with DWC-PVX16W camera base.

Accessories

DWC-PZCM
Ceiling mount bracket for multi-sensor cameras
Learn more
DWC-V1CNMW
Corner and pole mount bracket - white
Learn more
DWC-WMJUNCW
Junction box for wall mount brackets
Learn more
DWC-PZPARAM
Parapet mount bracket
Learn more
DWC-PZADP
Parapet mount tilting adapter for DWC-PZPARAM
Learn more
DWC-PZWM
Wall mount bracket for multi-sensor cameras
Learn more
