Blackjack NVRs
HD IP Video Management Solutions
are Built for Users.™
NVR Series Powered by DW Spectrum™
BlackjackTM NVRs powered by DW SpectrumTM are powerful and user-friendly video management solutions, highly optimized to provide unlimited scalability, unmatched bandwidth savings and simplified system setup and management. The architecture is cross-platform supporting Windows®, Linux® and MAC® platforms for complete optimization to match any application.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
|||

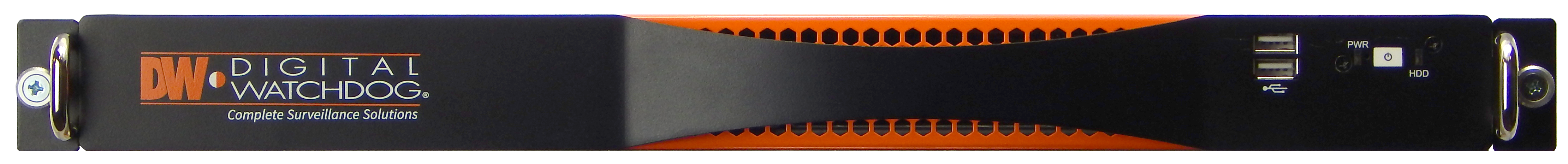

| Blackjack NVR Models | CUBE LX | CUBE | S-RACK 1 U | P-RACK 1 U | P-RACK 2 U | P-RACK 2 U w/RAID | E-RACK 2U -12 Bay | E-RACK 3U - 16 Bay | E-RACK 4U -24 Bay | E-RACK 4U -36 Bay | ||
| Maximum IP Cameras | 16 | 64 | 16 | 64 | 128 | 128 | 128 | |||||
| Included IP Licenses | 4 | 4 | 4 | 4 | 4 | 8 | 8 | |||||
| Form Factor | Desktop | Desktop | Rack Mount | Rack Mount | Rack Mount | Rack Mount | Rack Mount | |||||
| Operating System | Windows 7 64 Bit | --- | DW-BJCUBEXT | --- | DW-BJP1UXT | DW-BJP2UXT | DW-BJPR2UXXT | DW-BJER2UXXT | DW-BJER3UXT | DW-BJER4UXXT | ||
| Linux Ubuntu | DW-BJCUBEXT-LX | --- | DW-BJS1UX-LX | DW-BJP1UXT-LX | DW-BJP2UXT-LX | DW-BJPR2UXXT-LX | DW-BJER2UXXT-LX | DW-BJER3UXT-LX | DW-BJER4UXXT-LX | |||
| OS on SSD | --- | --- | 80GB SSD | 80GB SSD | 80GB SSD | 80GB SSD | 80GB SSD | |||||
| --- | --- | Option: DW-SSD64 - Spare SSD for Mirroring the OS * | Option: DW-SSD64 - Spare SSD for Mirroring the OS * | Option: DW-SSD64 - Spare SSD for Mirroring the OS * | ||||||||
| CPU | Intel® i3® Processor | Intel® i5® Processor | Intel® Quad Core N3150 Processor | Intel® i5® Processor | Intel® i7® Processor | Intel® i7® Processor | Intel® i7® Processor | |||||
| Option: DW-CPUI7 - Upgrade Processor to i7* | ||||||||||||
| Memory | 4GB | 8GB | 4GB | 8GB | 16GB | 16GB | 16GB | |||||
| Option DW-RME8 - Upgrade Memory to 16GB* | ||||||||||||
| NIC | 2x Gigabit Ethernet (RJ45) | 2 x Gigabit Ports | 2x Gigabit Ethernet (RJ45) | 2x Gigabit Ethernet (RJ45) | 2x Gigabit Ethernet (RJ45) | 2x Gigabit Ethernet (RJ45) | ||||||
| Option: DW-R4NIC - Upgrade 2x Dual NIC Cards* | Option: DW-R4NIC - Upgrade 2x Dual NIC Cards * | Option: DW-R4NIC - Upgrade 2x Dual NIC Cards * | ||||||||||
| Ethernet Ports | PoE Switch | --- | --- | 16 x 10/100Mbps PoE Ports + 2 x Gigabit Uplink Ports | --- | --- | --- | --- | ||||
| Number of PoE Ports | --- | --- | 16 (Class3; 15.4W per Ports) | --- | --- | --- | --- | |||||
| System | Max Video Storage Rate (Mbps) | 80 Mbps | 360 Mbps | 80 Mbps | 360 Mbps | 600 Mbps | 600 Mbps | 600 Mbps | ||||
| Storage | Maximum Hard Drives | 3 x SATA HDD | 3 x SATA HDD | 1 x SSD + 3 x HDD | 1 x SSD + 3 x HDD | 2 x SSD + 6 x HDD | 2 x SSD + 12 x HDD | 2 x SSD + 16 x HDD | 2x SSD + 24 x HDD | 2 x SSD + 36 x HDD | ||
| Maximum Storage | 18TB | 18TB | 24TB | 18TB | 36TB | 36TB RAID 5 | 48TB RAID 5 | 96TB RAID 5 or RAID 6 | 144TB RAID 5 or RAID 6 | 216TB RAID 5 or RAID 6 | ||
| Option DW-HSD6TB - 6TB Hot Spare Drive * | ||||||||||||
| Video-Out | Outputs | DVI-D or True HD Output | True HD Output, DVI, Display Port | True HD Output, VGA, DVI | 4x HD Display Port Outputs, simultaneous monitors | 4x HD Display Port Outputs, simultaneous monitors | ||||||
| Video Card | --- | --- | GeForce 210 512MB | AMD | AMD | |||||||
| Option: DW-RV4H - 4 head HD Video Card* | Included: 4-DisplayPort to True HD adapters | |||||||||||
| Resolution | HD 1080p | HD 1080p | HD 1080p | HD 1080p | ||||||||
| Pre-Loaded VMS Software | DW Spectrum™ | |||||||||||
| Unlimited Remote Clients | Cross Platform - Windows, Linux and Mac | |||||||||||
| Mobile Apps | iOS and Android | |||||||||||
| DW Spectrum™ IP Video Management Software | “The Grid” flexible user interface with Unlimited layouts | Industries most powerful VMS engine - with Intelligent HD dual stream management | Multi-server/one system architecture | Camera Failover with priority Camera Management in Multi-Server Environments | ||||||||
| Seamless transition from live to recorded video | Automatic camera discovery - auto-detect and connect to 1,000s of supported IP cameras at every resolution ONVIF Profile S conformant | One click upgrade - enterprise wide server upgrades | Open Platform with built in API and SDK to integrate with anything | |||||||||
| Unique Interactive timeline with built in Smart, Thumbnail and Calendar Search | Alarm Input / Relay Output and Audio recording supported | Lifetime Software updates included with No Support Agreement Required | User Management with LDAP - active directory capability | |||||||||
| Keyboard & Mouse | Included | Included | Included | Included | Included | Included | ||||||
| Rail Kit | --- | Optional | Included | Included | Included | Included | ||||||
| Power | 100VAC: 250W, 2.5 Amps** | 100VAC: 250W, 2.5 Amps** | System: 300W* PoE Switch: Up to 270W |
300W** | 400W** | 400W** | Redundant Dual Power, 920W** |
Redundant Dual Power, 500W** | Redundant Dual Power, 920W** |
Redundant Dual Power, 1280W** |
||
| Operating Temperature and Humidity | 41°F~104°F / 20~90% RH | 41°F~104°F / 20~90% RH | 50°F ~ 95°F / 20~90% RH | 41°F~104°F / 20~90% RH | 41°F~104°F / 20~90% RH | 41°F~104°F / 20~90% RH | 41°F~104°F / 20~90% RH | 41°F~104°F / 20~90% RH | 41°F~104°F / 20~90% RH | 41°F~104°F / 20~90% RH | ||
| Dimension (WxDxH) (inches) | 12.8" x 8.5" x 7.5" | 12.8" x 8.5" x 7.5" | 17.25” x 20.8” x 1.625” | 17.25" x 26.5" x 1.625" |
17.32" x 26" x 3.5" |
17.32" x 26" x 3.5" |
17.2" x 25.5" x 3.5" | 17.2" x 25.5" x 5.2" |
17.2" x 27.5" x 7" |
17.2" x 27.5" x 7" | ||
| Field Repair Kit | --- | --- | --- | --- | --- | DW-FRK2U | DW-FRK3U | DW-FRK4U | ||||
| Warranty | 5 Year Limited | 5 Year Limited | 5 Year Limited | 5 Year Limited | ||||||||
| * Available at time of initial order only / ** UPS Recommended | ||||||||||||
DW Spectrum™ is a powerful and user-friendly IPVMS, highly optimized to provide unlimited scalability, unmatched bandwidth savings and simplified system setup and management. DW Spectrum™ offers a cutting-edge User Interface (UI) with features such as unlimited layout designs and smart network bandwidth auto-adjust. DW Spectrum™ is easy to use, fast and powerful.
NVR Features:
- Supports All OnVIF® Conformant IP Cameras
- Storage Options: 2-216TB Internal Storage
- Local Monitoring Outputs Ports
- Dual Network Ports
- USB & SD Card Interface
- OS Programming Information
- Hosting DW Spectrum™ for Setup, Configuration, Monitoring and Recording
- Record up to 128 IP Cameras with total throughput of 360Mbps.
- One-time Recording License Charge, Fully Transferable Between Cameras and Encoders
- No Annual Maintenance Fees
- Simple Enterprise Scalability
- Dual Stream Recording
