2.1MP/1080p License Plate Recognition Outdoor Bullet Universal HD over Coax® Camera

Universal HD Coax^® Technology supports All
HD-Analog and All Analog to 960H

The Universal HD^® Complete Solutions are the best way to upgrade an existing analog solution to high definition. Universal HD supports HD-Analog, HD-TVI, HD-CVI and CVBS analog signals to 960H.

Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
2.1MP/1080p 1/3" image sensor at real-time 30fps

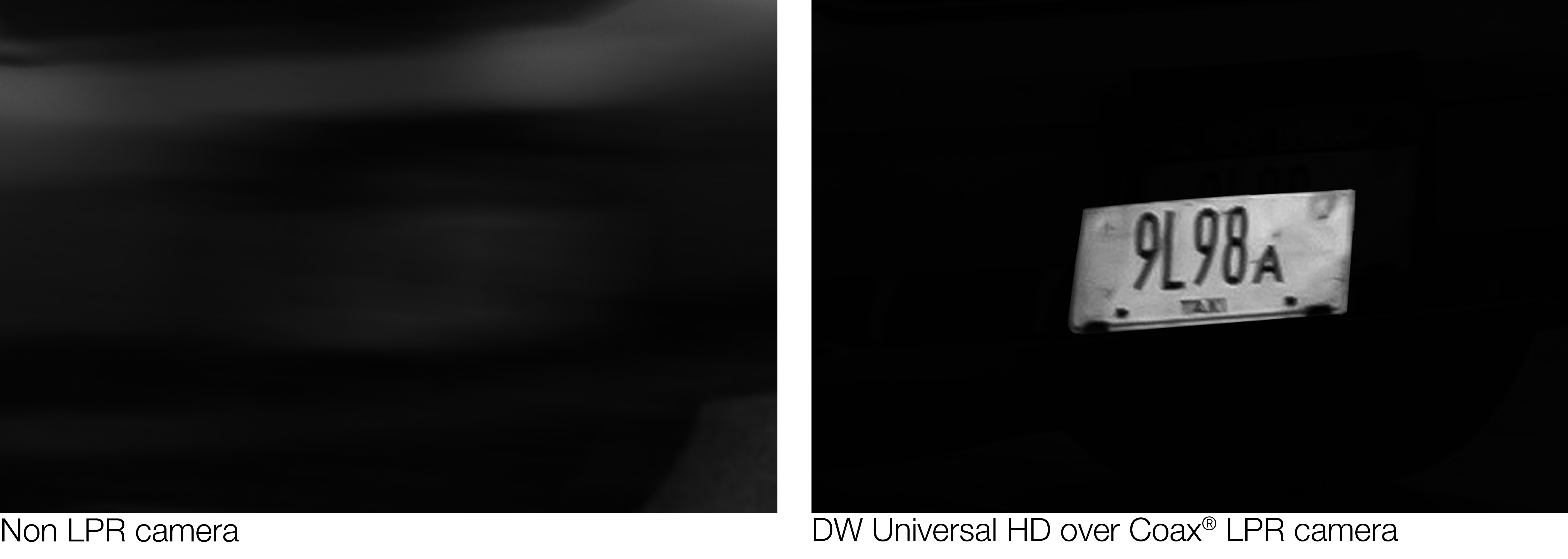

HD analog LPR™ license plate recognition technology captures reflective license plates up to 50mph with a 13’ ~ 115’ Capture Range
Reliable performance under any lighting conditions
External OSD and lens adjustment
6 ~ 50mm varifocal p-iris lens
OSD control via coaxial (UTC)
115' Smart IR™ with intelligent camera sync.
Smart DNR™ 3D digital noise reduction
Highlight masking exposure (HME)
Auto sensing 24VAC/12VDC with line lock
Easy icon driven OSD menu with built-in joystick
Programmable privacy zones
Auto gain control (AGC)
Backlight compensation (BLC)
Dynamic range compressor (DRC) reveals low light detail
No fog or condensation under any weather conditions
IP66 certified weather and tamper resistant
5 year warranty

Image sensor	2.1MP/1080p 1/3" CMOS
Active pixels	1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization	Internal
Resolution	1920 x 1080 (1080p)
Minimum scene illumination	0 lux (B&W)
S/N ratio	55dB
Video output	HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
I/O
Alarm output	1 alarm output
LENS
Focal length	6 ~ 50mm
Lens type	Varifocal p-iris lens
Field of view (FoV)	45.3° ~ 5.7°
IR distance	115ft range
OPERATIONAL
Shutter mode	Auto, manual, FLC
Shutter speed	1/30-1/30,000
Backlight	On, off
Dynamic range compressor (DRC)	Off, low, middle, high
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
Day / night	Night
Mirror / flip	Yes
Auto gain control	0~10
Motion detection	Yes
Privacy zones	16 programmable privacy zones
Sharpness	0 ~ 10
Gamma	0.45 ~ 0.75
De-fog	On, off
RS485 / UTP built-in	Pelco D / Pelco C
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified weather and tamper resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V/AC24V dual voltage
Power consumption	DC12V (LED ON): 6.12W
Power consumption	AC24V (LED ON): 5.7W
MECHANICAL
Material	Aluminum bullet housing
Dimensions	9.4” x 3.81” (264 x 96.7mm)
Weight	1.83lbs (0.83kg)

DWC-V7253

2.1 MP Indoor/Outdoor Universal HD over Coax® Low-Profile Dome Camera

DWC-B6263WTIR

2.1 MP Indoor/Outdoor Universal HD over Coax® Bullet Camera with IR

DWC-V6263WTIR

2.1 MP Indoor/Outdoor Universal HD over Coax® Dome Camera with IR

DWC-D3263WTIR

2.1MP Indoor Universal HD over Coax® Dome Camera with IR

DWC-D3263TIR

2.1 MP Indoor Universal HD over Coax® Dome
Camera with IR

DWC-B6263TIR

2.1 MP Indoor/Outdoor Universal HD over Coax® Bullet Camera with IR

DWC-V6263TIR

2.1 MP Indoor/Outdoor Universal HD over Coax® Dome Camera with IR

DWC-V7253TIR

2.1 MP Indoor/Outdoor Universal HD over Coax® Low-Profile Dome Camera with IR

DWC-V7253WTIR

2.1 MP Indoor/Outdoor Universal HD over Coax® Low-Profile Dome Camera with IR

DWC-MC253WTIR

2.1 MP Indoor/Outdoor Universal HD over Coax® Micro Dome Camera with IR

DWC-C223W

2.1MP Indoor Universal HD over Coax® Box Camera

DWC-D4283WD

2.1MP Indoor Universal HD over Coax® Snapit™ Dome Camera

DWC-D4283WTIR

2.1MP Indoor Universal HD over Coax® Snapit™ Dome Camera with IR

DWC-V4283WD

2.1MP Indoor/Outdoor Universal HD over Coax® Snapit™ Dome Camera

DWC-V4283WTIR

2.1MP Indoor/Outdoor Universal HD over Coax® Snapit™ Dome Camera with IR

DW-VAONE 16

Universal HD 16-Channel Digital Video Recorder

DW-VAONE 16-L

Universal HD 16-Channel Digital Video Recorder - Looping

DW-VAONE 32

Universal HD 32-Channel Digital Video Recorder

DW-VAONE 4

Universal HD 4-Channel Digital Video Recorder

DW-VAONE 8

Universal HD 8-Channel Digital Video Recorder

DWC-BLJUNC

Junction box for bullet cameras

DWC-PMB-BU

Pole mount bracket for bullet cameras

Title	Type	Size	Download
Camera Accessories Compatibility Chart		3.88 MB
DWC-LPR650U Data Sheet		0.35 MB
DWC-LPR650U Data Sheet - French		0.32 MB
DWC-LPR650U Data Sheet - Spanish		0.61 MB
DWC-LPR650U Manual		8.94 MB
STAR-LIGHT Universal HD over Coax Sell Sheet		1.37 MB

Frequently asked questions

Q. My camera has a spotlight effect at night.

Enter the Setup Menu
Go to Day & Night
Enable SMART IR and adjust the level

SMART IR adjusts the image for IR cameras to eliminate LED light reflection and white spots in the image. By breaking down the camera’s field of view into five zones, Smart IR allows for even distribution of the IR light. This prevents excessive illumination on images that are in the front of the scene and offers a clear image in B/W without any loss of detail.

Note: This is best adjusted at night

Q. My camera is stuck in Black & Whtie.

Make sure the camera is compatible with the dvr
Make sure the camera is on the right signal
Make sure the camera is getting sufficient light
Make sure the light sensor is not obstructed.
Move camera to a known working port. If problem follows the camera then the camera is the problem
Enter the Camera's setup menu and make sure Day & Night is on Auto
Factory default/Initialize the camera
Bench test the camera with separate wiring and power
Send in for repair if the problem persists.

Q. There are horizontal rolling bars on the monitor.

This is a video ground loop due to more than one ground between camera and monitor/head-end

Ground Loop problems can be resolved by making sure that only one end of any video cable is
connected to a local ground. Make sure the video cable shields do not come into direct contact with
each other to prevent unintentional local grounding.

Tape all connectors in such situations to minimize this risk.
Keep camera runs as short as possible with all video cables cut to fit. Excess cable left along any run can increase the risk of interference.
At the monitor end make sure all the CCTV equipment is connected to same power point to provide a common local ground.
Implement a ground loop isolator
