Scalable, enterprise-level servers, powered by DW Spectrum® IPVMS.

What are Blackjack® servers?

DW’s Blackjack® desktop servers powered by DW Spectrum® are user-friendly video management solutions, providing unlimited scalability, and simplified system setup and management. The architecture is cross-platform supporting Windows®, Linux® and MAC® platforms for complete optimization to match any application.
Choose your own Blackjack® | View All Products | Download Brochure | Schedule a Demo | Starter Kits
DISCOVER MANAGE VIEW INTEGRATE
IP Cameras (ONVIF, Custom)
IP Cameras / NVRs / DVRs
Live Video (adaptive)
HTTP Generic Events
RTSP / HTTP Streams
Advanced Routing
Recorded Video (adaptive)
HTTP Request-as-an-Action
I/O Devices
Storage (HDD/NAS/DAS)
Server Health
Server API
Samba NAS
Events and Rules Engine
Log Files
Storage SDK
Virtual Camera
Failover
Audit Trail
Video Source SDK
H.265 on ONVIF Cameras
Transcoding
Storage Status
Any Device or System
Webcam Support
Failover on Storage Failure
Dual-Stream RTSP
C2P Integration
System Update
Layout-as-an-Action
Metadata SDK
Health monitoring Dashboard
Plugins

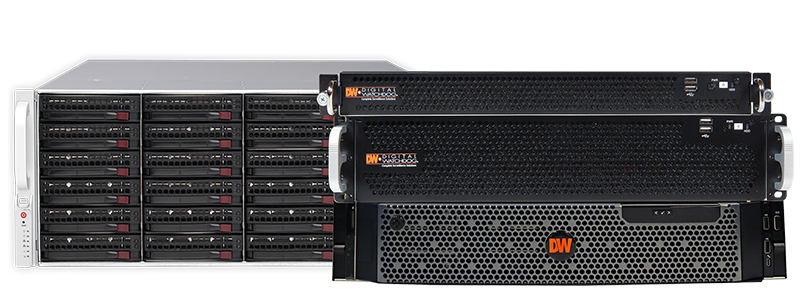

Rackmount Servers
High-capacity, industry compliant rackmount servers are ideal for any enterprise solution with multiple locations and monitoring capabilities.
Learn More

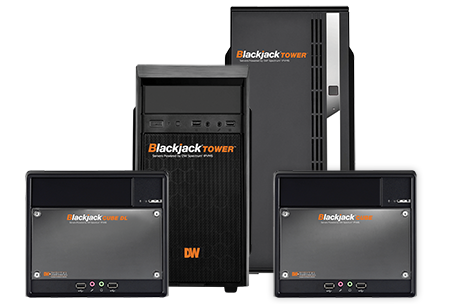

Desktop Servers
Desktop solutions, enterprise capabilities.
Learn More

Blackjack® Rackmount Servers:

  Blackjack P-Rack Blackjack P-Rack Blackjack P-Rack Blackjack E-Rack Blackjack Rack Blackjack Rack Blackjack Rack
Model Blackjack® P-Rack™ 1U Blackjack® P-Rack™ 2U Blackjack® P-Rack™ 2U w/RAID Blackjack® E-Rack™ 4U - 36 Bay Blackjack® Rack™ 2U - 12 Bay Blackjack® Rack™ 2U - 18 Bay Blackjack® Rack™ 2U - 26 Bay
Included Licenses 4 4 4 8 8 8 8
Form Factor 1U rackmount 2U rackmount 2U rackmount 4U rackmount 2U rackmount 2U rackmount 2U rackmount
Max video Storage Rate (Mbps) 360Mbps 600Mbps 600Mbps 600Mbps 600Mbps 600Mbps 600Mbps
Storage 48TB 112TB 96TB raw storage 320TB raw storage 192TB raw storage 288TB raw storage 416TB raw storage
Certifications ONVIF, NDAA/TAA ONVIF, NDAA/TAA ONVIF, NDAA/TAA ONVIF, NDAA/TAA UL listed, ONVIF, NDAA/TAA UL listed, ONVIF, NDAA/TAA UL listed, ONVIF, NDAA/TAA
Warranty 5 year limited 5 year limited 5 year limited 5 year limited 5 year warranty, next business day on-site hardware service, keep your hard drive 5 year warranty, next business day on-site hardware service, keep your hard drive 5 year warranty, next business day on-site hardware service, keep your hard drive

Blackjack® Desktop and SMB Servers

  Blackjack Tower Blackjack Tower Blackjack Tower Blackjack Tower Blackjack Tower Blackjack Cube-LX Blackjack Cube Blackjack Cube-DL Blackjack Bolt
Model Blackjack® Full-Size Tower™, UL-listed, i7 processor Blackjack® Full-Size Tower™, UL-listed, i7 processor, RAID Blackjack® Mid-Size Tower™, UL-listed, i3 processor Blackjack® Mid-Size Tower™, UL-listed, i5 processor Blackjack® Mid-Size Tower™, UL-listed, i7 processor Blackjack® Cube-LX™ Blackjack® Cube™ Blackjack® Cube-DL™ Blackjack® Bolt™
Included Licenses 4 4 4 4 4 4 4 4 4
Form Factor Full-size tower Full-size tower Mid-size tower Mid-size tower Mid-size tower Desktop Desktop Desktop Slim Desktop
Max video Storage Rate (Mbps) 600Mbps Up to 600Mbps 180Mbps 360Mbps 480Mbps 80Mbps 360Mbps 480Mbps 80Mbps
Storage 112TB 112TB raw storage 20TB 48TB 48TB 18TB 18TB 20TB 16TB
Certifications UL listed, ONVIF, NDAA/TAA UL listed, ONVIF, NDAA/TAA UL listed, ONVIF, NDAA/TAA UL listed, ONVIF, NDAA/TAA UL listed, ONVIF, NDAA/TAA ONVIF, NDAA/TAA ONVIF, NDAA/TAA ONVIF, NDAA/TAA ONVIF, NDAA/TAA
Warranty 5 year limited 5 year limited 5 year limited 5 year limited 5 year limited 5 year limited 5 year limited 5 year limited 5 year limited

Key Technologies

caas-icon1
DW Spectrum® IPVMS
Access and control from your phone or tablet: Our iPhone® and Android® app allow you to check in on your business from across town or across the country.
Learn More
Dual_network_cards_uber
Dual Power Supply
Redundacy for reliability.
*On supporting models. See product specifications.
Hot_Swap_HDD_Uber

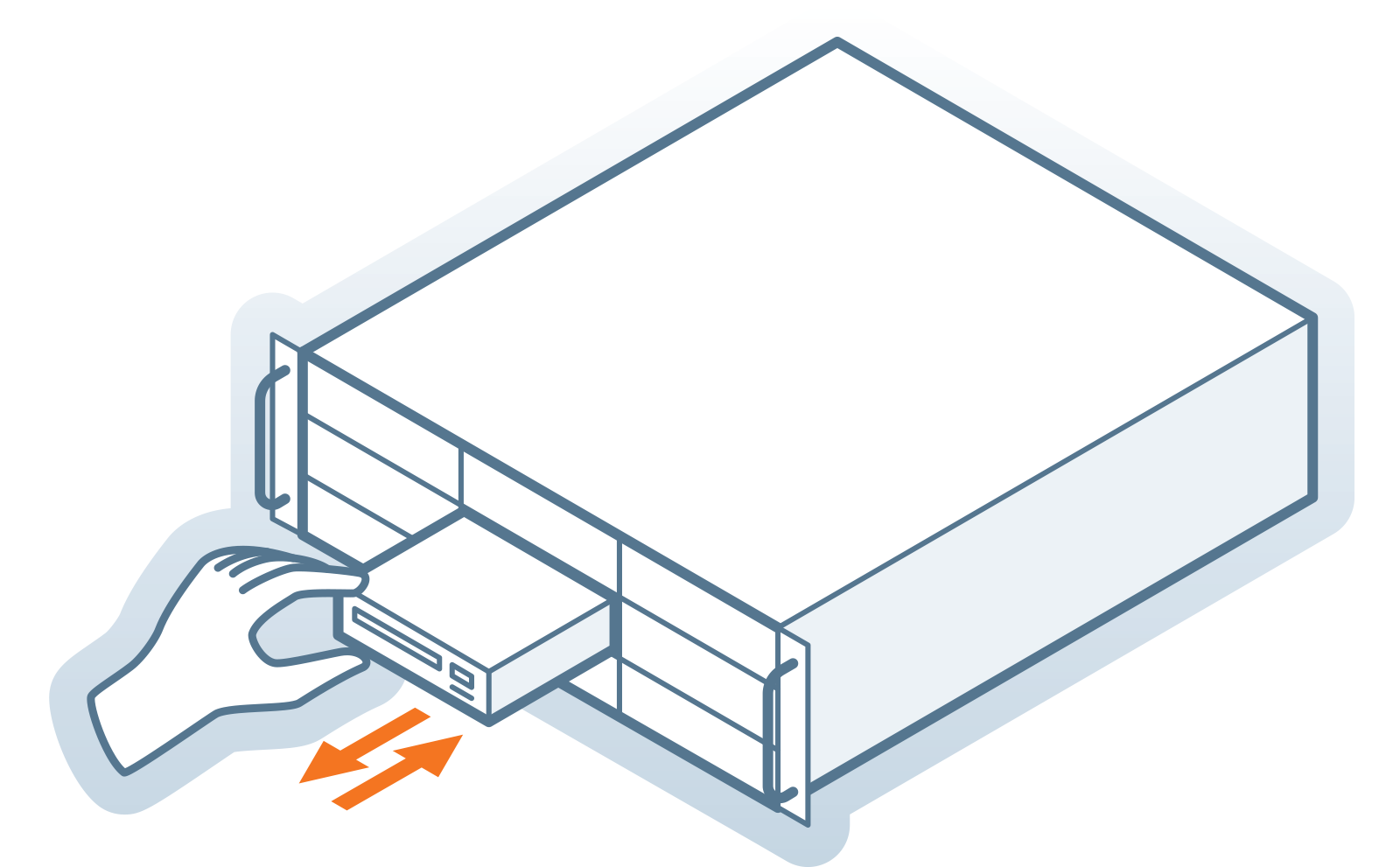

Hot Swappable Drives*
When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system's drives healthy and operating.
*On supporting models. See product specifications.
Dual_network_cards_uber
Dual Network Cards
Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR's communication.
*On supporting models. See product specifications.
RAID_Uber
RAID Storage Mirroring*
Add extra security to your video surveillance system by protecting recorded data and overcoming data loss in the case of a hard drive failure.
*On supporting models. See product specifications.
* See product pages and specifications.
USB Mouse and Keyboard Included
Blackjack® servers come with a USB mouse and keyboard included at no extra cost.
Railkit Included
All Blackjack® rackmount servers come with the rail kits included at no extra cost for easy out-of-the-box installation.
4-in-1_uber
Next business day onsite hardware repair after remote diagnosis
If an issue occurs with your product that cannot be resolved by phone, DW will dispatch a certified technician to attempt repair of your machine at your place of business, usually the next business day.
*Blackjack Rack servers only. See product specifications.
Keep_HDD_Uber
Keep your drive after replacement to ensure data security
Our Keep Your Drive Warranty delivers users replacement hard drives, without the need to return the defective drives. Users can keep their drives and protect their data and their customer’s privacy.
* On supporting models. See product specifications.
Assembled_in_USA_Uber
Designed and comissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
* On supporting models. See product specifications.
OS_Uber
ONVIF® conformant
All Blackjack servers, NAS and workstations are ONVIF conformant, allowing users to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.
OS_Uber
Operating Systems
Blackjack servers ofer customization with Windows, Windows Server, Linux and Embedded Linux OS options. Remote monitoring solutions are also available for Android and iOS devices with complete cross-platform compatibility.
OS_SSD_Uber_Icon_155px
OS on dedicated SSD
DW’s servers provide a dedicated SSD for the OS. This results in faster boot time, faster application loading times and improved system responsiveness.

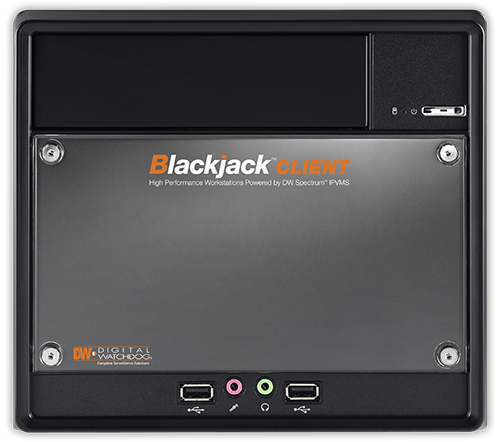

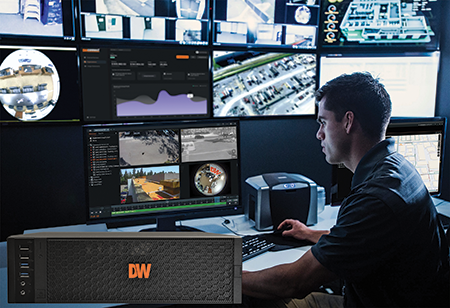

Blackjack Monitoring Workstations
These high performance multi-monitor workstations are powered by DW Spectrum IPVMS and provide the ultimate solution to viewing and monitoring multiple Blackjack servers and multi-sensor Megapix® DWC-PZV2M72T and DWC-PZ21M69T cameras from a single location.
Learn More
C2P_Uber_REV
C2P Integration Workstation

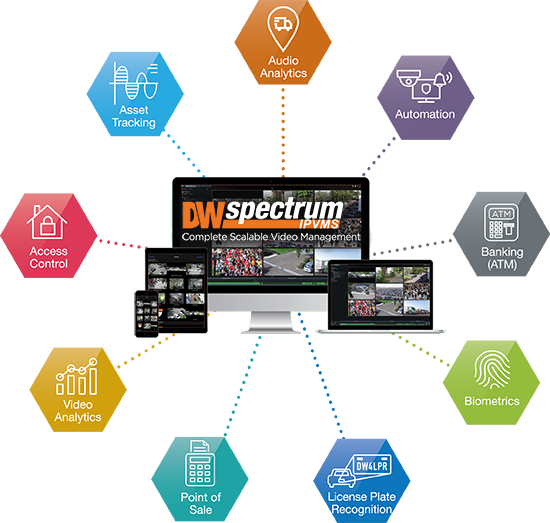

The Blackjack® C2P™ Server is a dedicated station to facilitate the integration of DW Spectrum IPVMS with C2P (Convergence to Pixel®) products.
Learn More

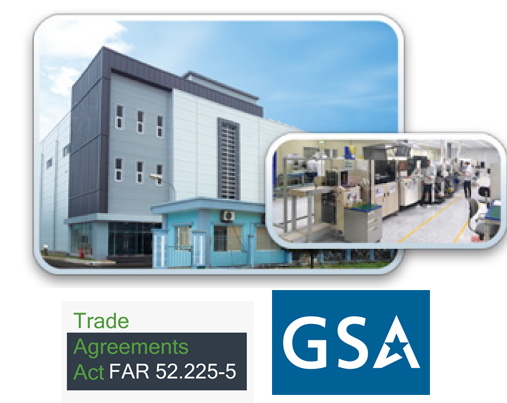

NDAA / TAA Compliant
DW IP cameras, analog cameras, NVRs, DVRs, network devices and management software sold and distributed worldwide are designed and developed in U.S.A. and Korea. Manufacturing is done in Korea.
Most DW products qualify for GSA Schedule Contracts and other government opportunities because they are TAA / NDAA compliant.
Learn More
*On supported models. See product pages for more information.
