Home Products DW-BJDX51xx, DW-BJDX51xx-LX

DW-BJDX51xx
DW-BJDX51xx-LX

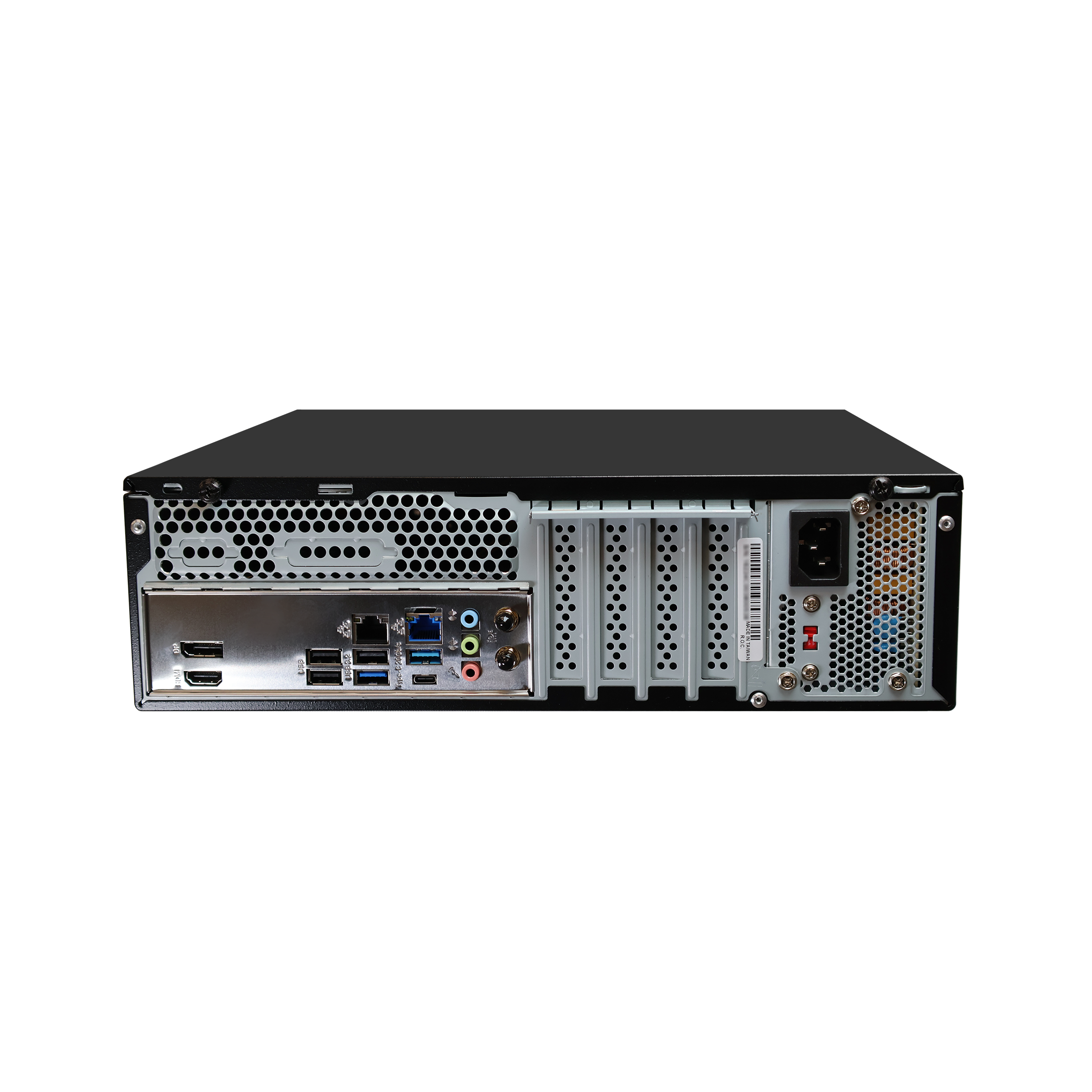

Blackjack DX Server, Intel I5 Processor
Find a Reseller Request a Demo Contact Us FAQs
NDAA TAA


Features
  • Supports all ONVIF conformant IP cameras
  • Storage options 4-20TB internal storage
  • Intel® i5 processor
  • 1xTrue HD, 1x DP, 1 display output at a time
  • Dual network ports
  • Windows 10® or Linux® Ubuntu® 20.04 LTS on separate SSD
  • Hosting DW Spectrum® for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel license included (DW-SPECTRUMLSC004).
  • No annual maintenance fees
  • Simple enterprise scalability and auto device discovery
  • Dual stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 Years limited warranty

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 360Mbps throughput.

DW Spectrum® IPVMS

DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Video
CPU Intel® i5® processor
Data rate (Mbps) 360Mbps
Display Modes Unlimited, Sequence, Customizable
Local Video Output Resolution 4096x2160 (True HD), 1920x1200 (DVI-D), 1920x1200 (D-Sub)
Local Video Outputs True HD, 1 display output at a time, For initial configuration and server management, D-Sub port, DVI-D
Memory 16GB
Video Card On-board Intel Graphics
Video Compression H.264, H.265
Video Operating System Linux® Ubuntu Desktop 20.04.5 LTS OS, Windows® 10 IoT Enterprise LTSC
OS on SSD m.2 SSD
Storage
Raw internal storage options 4TB  8TB  12TB  16TB  20TB
Max HDD Bay 2 x SATA HDD
Maximum Storage 20TB
RAID Options No RAID
Performance
Playback Functions Timeline, Calendar, Event search, Thumbnail search, Smart motion search
PTZ control ONVIF
Recording Modes Continuous, Motion detection, Motion + low res always, Object only, Object + Low res, Motion + Object, Motion + Object + Low res
System Operation Graphical user interface (GUI), USB mouse (included), Remote via DW Spectrum IPVMS
Network
Backup Network backup via DW Spectrum IPVMS
Ethernet Ports 2x 1G Ethernet (RJ45)
Network Remote Software DW Spectrum Mobile App, Cross-platform - Windows®, Linux Ubuntu® and Mac®
Pre-loaded VMS software DW Spectrum® IPVMS
Electrical
Power Consumption 300W, A UPS is recommended
General
Accessories Keyboard, Mouse
Certification NDAA Compliance  ONVIF Conformant  TAA Compliance
Form Factor Slim Desktop
Included IP licenses 4
Operating Temperature and Humidity 41 ~ 104 °F (5~40 °C), 20 ~ 90% RH
Recorder Dimensions (H X W X D) Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm), Standing: 13.1” x 3.88” x 15.8” (334 x 98.5 x 402 mm)
Recording Licenses (Optional. Sold Separately) DW-SPECTRUMLSC001 - Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® IPVMS Recording Licenses
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module IPVMS License
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall IPVMS License
Custom-ordered licenses are available by request.
Lifetime upgrades are included with no annual renewal fees.
Serial ports ONVIF
USB interface Yes
Warranty 5 Year Limited Warranty

Part Numbers

Model #

Storage Size and Operating System

DW‐BJDX5104T 4TB, Windows OS
DW‐BJDX5108T
8TB, Windows OS
DW‐BJDX5112T
12TB, Windows OS
DW‐BJDX5116T 16TB, Windows OS
DW‐BJDX5120T
20TB, Windows OS
DW‐BJDX5104T-LX
4TB, Ubuntu Linux OS
DW‐BJDX5108T-LX 8TB, Ubuntu Linux OS
DW‐BJDX5112T-LX 12TB, Ubuntu Linux OS
DW‐BJDX5116T-LX 16TB, Ubuntu Linux OS
DW‐BJDX5120T-LX 20TB, Ubuntu Linux OS

Purchasing Options

DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC020
Twenty (20)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLSC050
Fifty (50)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLSC100
One Hundred (100)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC016
Single DW Spectrum IPVMS License - allows up to 16-channel or recording when used with DW-ENHD16,  No Annual Renewal, No Upgrade Required.
DW-SPIOLSC001 IP I/O Module License - Supported devices IP I/O Modules are automatically discovered and can be used to trigger system events, actions, and alerts.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.
