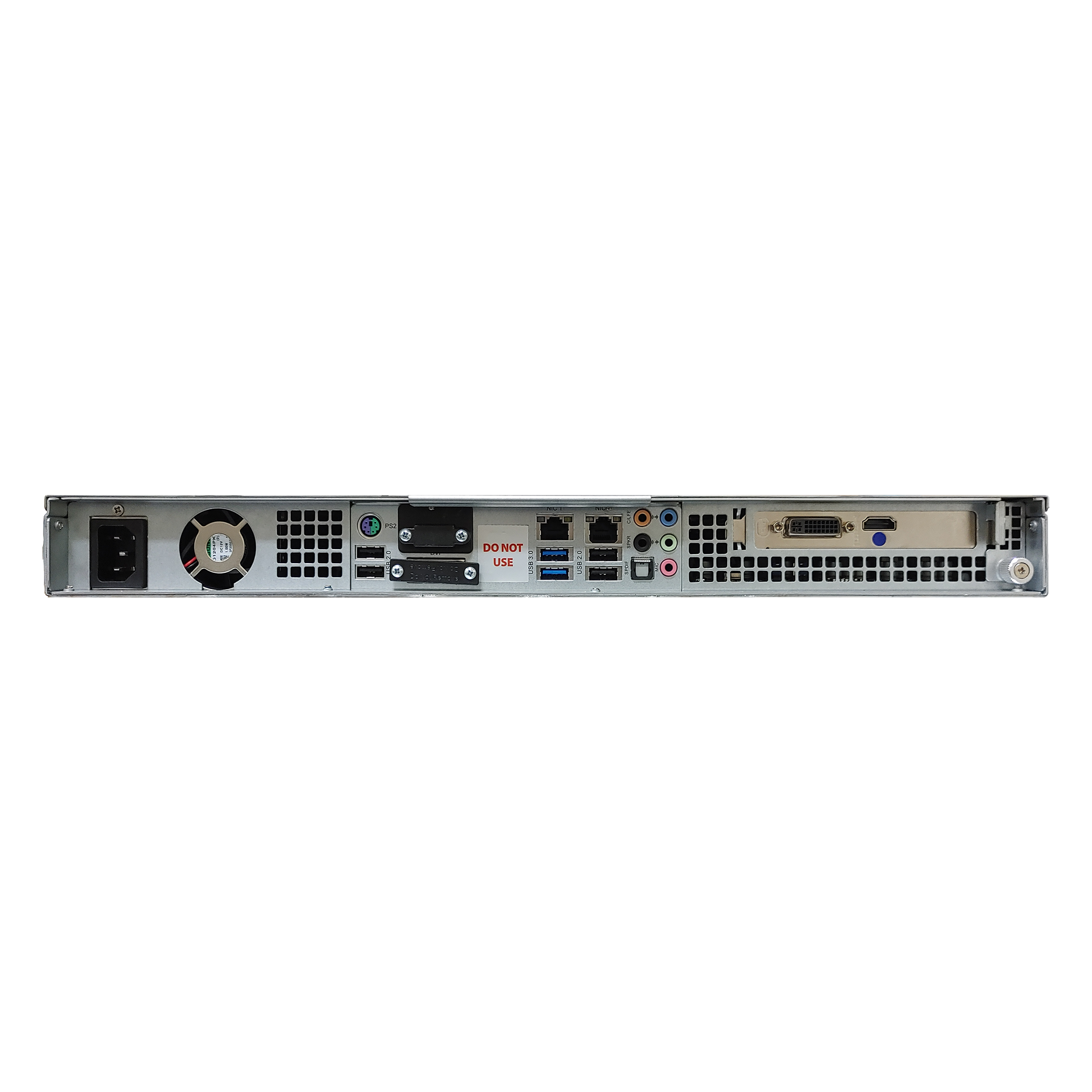

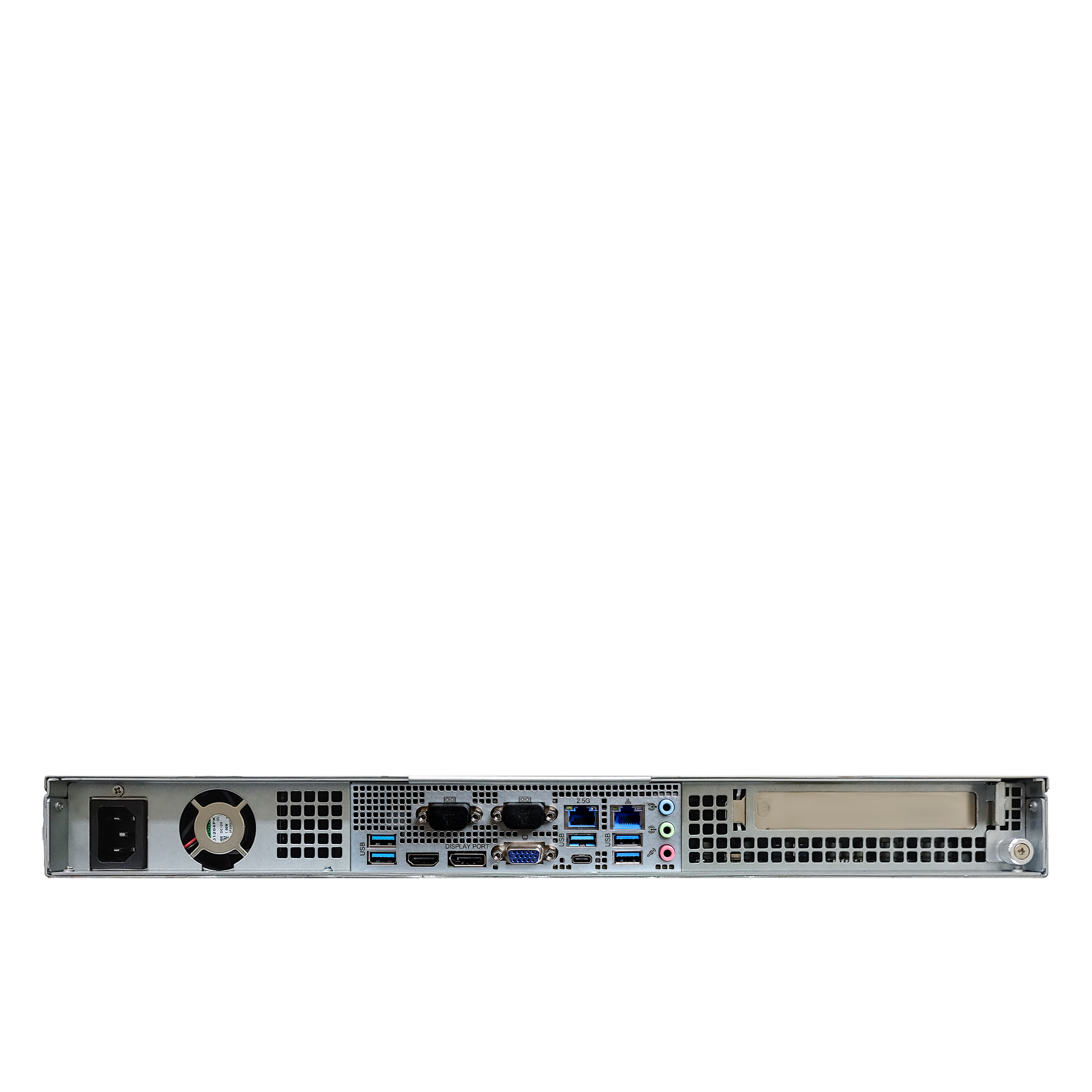

Blackjack® P-Rack 1U 4-Bay Chassis
Model: DW-BJP1U, DW-BJP1U-LX

Find a Reseller Request a Demo ContactUs

Blackjack® P-Rack™ servers can record and manage single- and multi-sensor IP cameras of any resolution, with an equivalent capacity of up to 64 2.1MP cameras at 30fps and a maximum of 360Mbps throughput. Standard features include Intel® i5®, Windows® 10 IoT or Linux® Ubuntu® OS and 2x NIC cards. Blackjack® P-Rack™ servers can be configured with 10-30TB HDD and come with our 5 year limited warranty.

All Blackjack® P-RACK NVR models come with a DW-SPECTRUMLS004 4-channel license included.
For additional license part numbers click here


  • Blackjack P-Rack 1U

  • Supports All ONVIF conformant IP cameras
  • Storage options 10-30TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 64 2.1MP cameras at 30fps and a maximum of 360Mbps throughput
  • True HD, VGA and DVI local monitoring outputs ports
  • Dual network ports
  • Windows® 10 IoT or Linux® Ubuntu® 16.04 OS on separate SSD
  • USB interface
  • Hosting DW Spectrum® IPVMS for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) DW Spectrum® IPVMS 4-channel licenses included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • Rail kit Included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • 5 years limited warranty
Maximum IP cameras
64 (2.1MP/1080p @30fps, with medium recording quality)
Included IP licenses
4
Form factor
Rack mount
Operating system
Windows® 10 IoT
DW-BJP1UXT
Linux Ubuntu® 64 bit
DW-BJP1UXT-LX
OS on SSD
150GB SSD
CPU
Intel® i5® processor
Option: DW-CPUI7 - upgrade processor to i7*
Memory
16GB


Ethernet port
2x gigabit ethernet ports (RJ45)


System
Max video storage rate (Mbps)
360 Mbps
Storage
Maximum hard drives
1 x SSD + 3 x HDD
Maximum storage
30TB
Video-out
Outputs
True HD output or VGA or DVI
Video card
GeForce 210 512MB
Option: DW-RV4H - 4 head HD video card*
Resolution
HD 1080p
Pre-loaded VMS software
DW Spectrum® IPVMS
Remote clients
Cross platform - Windows®, Linux Ubuntu® and Mac®
Mobile apps
iOS® and Andriod®
Keyboard & mouse
Included
Rail kit
Included
Power supply
300W**
Operating temperature and humidity
41°F~104°F (5°C~40°C)
Operating humidity
20~90% RH
Dimension (WxDxH)
17.32” x 20.86” x 1.718” (440 x 530 x 43.65 mm)
Warranty
5 year limited

Model #*

Supported Cameras

Storage Size

DW-BJP1U10T
Up to 64 2.1MP IP Cameras
10TB
DW-BJP1U20T
Up to 64 2.1MP IP Cameras
20TB
DW-BJP1U30T
Up to 64 2.1MP IP Cameras
30TB
* For Linux OS models, add -LX at the end of the part number.
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004
Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010
Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020
Twenty (20)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLS050
Fifty (50)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100
One Hundred (100)  DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16,  No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.

Additional Hardware Options (Available at time of initial order only):

Part Number

Description

DW-RV4H
4 head HD Video Card - Available at time of initial order only.
DW-CPUI7
Upgrade CPU processor to Intel® i7® - Available at time of initial order only.
DW-RME8
Upgrade memory to 16GB - Available at time of initial order only.
MEGApix
MEGApix PANO
MEGApix PTZ
MEGApix CaaS
DW Spectrum
DW Mobile App
DW Spectrum Mobile
Title Type Size Download
Blackjack P-RACK Linux silver faceplate AE specifications doc 0.10 MB
Blackjack P-RACK Quick Start Guide pdf 4.08 MB
Blackjack P-Rack sell sheet pdf 1.12 MB
Blackjack P-RACK Windows silver faceplate AE specifications doc 0.10 MB
Blackjack® P-RACK 1U datasheet pdf 0.40 MB
Blackjack® P-Rack 1U datasheet (French) pdf 0.41 MB
Blackjack® P-Rack 1U datasheet (Spanish) pdf 0.43 MB
DW-BJP1UxT black faceplate AE specifications doc 0.10 MB
DW-BJP1UxT CAD Drawing dwg 0.94 MB
DW Spectrum® IPVMS Ubuntu Installation Guide pdf 1.18 MB
DW Spectrum® IPVMS 2.6 to 3.0 Linux Update Guide pdf 1.94 MB

Version 4.0

Linux OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Client v4.0.0.29990 Linux x64 Bit deb v4.0.0.29990 Linux x64 Bit
DW Spectrum IPVMS Server v4.0.0.29990 Linux x64 Bit deb v4.0.0.29990 Linux x64 Bit
Windows OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Client v4.0.0.29990 Windows x64 Bit exe v4.0.0.29990 Windows x64 Bit 92327.59 KB
DW Spectrum IPVMS Full Software v4.0.0.29990 Windows x64 Bit exe v4.0.0.29990 Windows x64 Bit 137870.72 KB
DW Spectrum IPVMS Server v4.0.0.29990 Windows x64 Bit exe v4.0.0.29990 Windows x64 Bit 84940.01 KB
MAC OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Client v4.0.0.29990 Mac dmg v4.0.0.29990 116045.12 KB
Plug-in
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Paxton Plug-in v4.0.0.29990-Net2v5 exe v4.0.0.29990 1266.10 KB
DW Spectrum IPVMS Paxton Plug-in v4.0.0.29990-Net2v6 exe v4.0.0.29990 1303.68 KB

Version 3.2

Linux OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Server v3.2.0.28749 Linux x32 Bit deb v3.2.0.28749 DW Spectrum IPVMS 59457314
DW Spectrum IPVMS Server v3.2.0.28749 Linux x64 Bit deb v3.2.0.28749 DW Spectrum IPVMS 59457314
DW Spectrum IPVMS Client v3.2.0.28749 Linux x32 Bit deb v3.2.0.28749 59457314
DW Spectrum IPVMS Client v3.2.0.28749 Linux x64 Bit deb v3.2.0.28749 59457314
DW Spectrum IPVMS DW Witness Plug-in v3.2 Linux so DW Witness 59457314
Windows OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Full Software v3.2.0.28749 Windows x32 Bit exe v3.2.0.28749 DW Spectrum IPVMS 109387.79 KB
DW Spectrum IPVMS Full Software v3.2.0.28749 Windows x64 Bit exe v3.2.0.28749 DW Spectrum IPVMS 125233.21 KB
DW Spectrum IPVMS Server v3.2.0.28749 Windows x32 Bit exe v3.2.0.28749 DW Spectrum IPVMS 66949.30 KB
DW Spectrum IPVMS Server v3.2.0.28749 Windows x64 Bit exe v3.2.0.28749 DW Spectrum IPVMS 76119.95 KB
DW Spectrum IPVMS Client v3.2.0.28749 Windows x32 Bit exe v3.2.0.28749 71982.75 KB
DW Spectrum IPVMS Client v3.2.0.28749 Windows x64 Bit exe v3.2.0.28749 82751.18 KB
DW Spectrum IPVMS DW Witness Plug-in v3.2 Windows dll v3.2 DW Witness 96.00 KB
MAC OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Client v3.2.0.28749 Mac dmg v3.2.0.28749 84608.51 KB
Plug-in
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Paxton Plug-in v3.2_4. 0-3.2.0.28676 exe v3.2_4.0-3.2.0.28676 Paxton Net2Pro v5 1261.85 KB
DW Spectrum IPVMS Paxton Plug-in v3.2_4.6.2-3.2.0.28676 exe v3.2_4.6.2-3.2.0.28676 Paxton Net2Pro v6 1300.50 KB
DW Spectrum IPVMS DW Witness Plug-in v3.2 Linux so DW Witness 188.48 KB
DW Spectrum IPVMS DW Witness Plug-in v3.2 Windows dll v3.2 DW Witness 96.00 KB

Version 3.1

Linux OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Client v3.1 Linux x32 Bit zip v3.1.0.16975 DW Spectrum IPVMS
DW Spectrum IPVMS Client v3.1 Linux x64 Bit zip v3.1.0.16975 DW Spectrum IPVMS
DW Spectrum IPVMS Server v3.1 Linux x32 Bit zip v3.1.0.16975 DW Spectrum IPVMS
DW Spectrum IPVMS Server v3.1 Linux x64 Bit zip v3.1.0.16975 DW Spectrum IPVMS
Windows OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Client v3.1 Windows x32 Bit zip v3.1.0.16975 DW Spectrum IPVMS 74520.76 KB
DW Spectrum IPVMS Client v3.1 Windows x64 Bit zip v3.1.0.16975 DW Spectrum IPVMS 85902.76 KB
DW Spectrum IPVMS Full Software v3.1 Windows x32 Bit zip v3.1.0.16975 DW Spectrum IPVMS 110072.37 KB
DW Spectrum IPVMS Full Software v3.1 Windows x64 Bit zip v3.1.0.16975 DW Spectrum IPVMS 126260.30 KB
DW Spectrum IPVMS Server v3.1 Windows x32 Bit zip v3.1.0.16975 DW Spectrum IPVMS 64867.53 KB
DW Spectrum IPVMS Server v3.1 Windows x64 Bit zip v3.1.0.16975 DW Spectrum IPVMS 73342.21 KB
MAC OS
Title Type Version Compatibility Size Download
DW Spectrum IPVMS Client v3.1 Mac zip v3.1.0.16975 DW Spectrum IPVMS 83395.08 KB
Plug-in
Title Type Version Compatibility Size Download
DW Spectrum IPVMS C•CURE 9000 Plug-in v3.1 zip v3.1 DW Spectrum IPVMS 174355.05 KB
DW Spectrum IPVMS Paxton Plug-in v3.1 zip v3.1.0.16975 DW Spectrum IPVMS 72370.68 KB

Patches and Previous Versions

Frequently asked questions
Q. How can I move licenses from one server to another?
A. First deactivate license. and activate on the new server.
For Spectrum 3.0 or older, you need to request license deactivation.
-Licenses may be transferred by deactivating them. Send the license(s), HWID, and the reason to  licenses@dwcc.tv
 -Or go to our online form: https://digital-watchdog.com/page/license-deactiva...
Q. How can I know what version of Spectrum my server is currently on?
A. Go to System Administration and click on Updates. There you will see a list of servers with the version they are currently on. You can also click on F1 on your keyboard, to get this information as well as the version of the client. Page 178 of our Spectrum manual.
DW Spectrum™ IPVMS Manual
Q. What is Spectrum's default port number?
A. TCP / UDP port: 7001 is the default port to allow remote access to the Server.
