STAR-LIGHT FLEX™ 8 Megapixel User-Configurable Multi-Sensor Indoor/Outdoor Vandal AHD Dome Camera
Model: DWC-VS753WT
STAR-LIGHT Flex™ 8 Megapixel Multi-Sensor High Definition Analog cameras transmit crystal-clear 1080p images over coaxial cable with complete sensor position and field-of-view customization. The cameras reduce installation time and complexity by offering four different lens modules, each individually configurable and independent, easily positioned on a secure magnetic track and adjustable using a 3-axis gimbal.

Important Note: The camera requires a DVR that supports HD over Coax protocols, like the  VMAX A1.

CLICK HERE TO SEE STAR-LIGHT FLEX IN ACTION!

  • DWC-VS753WT

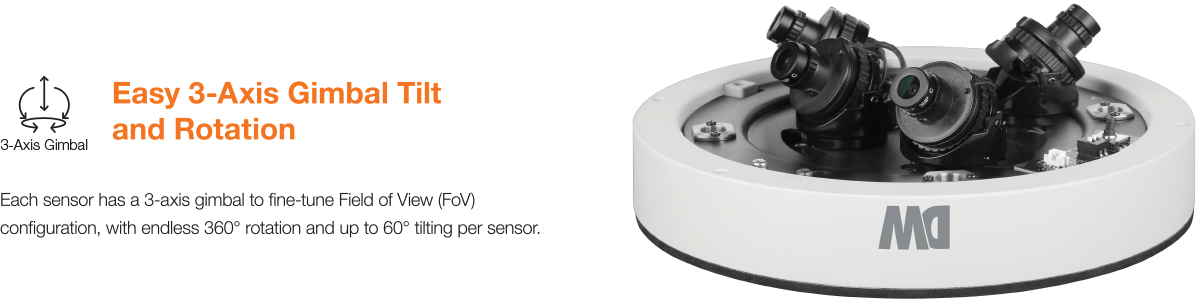

Easy 3-Axis Gimbal Tilt and Rotation
Each sensor has a 3-axis gimbal to fine-tune Field of View (FoV) configuration, with endless 360° rotation and up to 60° tilting per sensor.

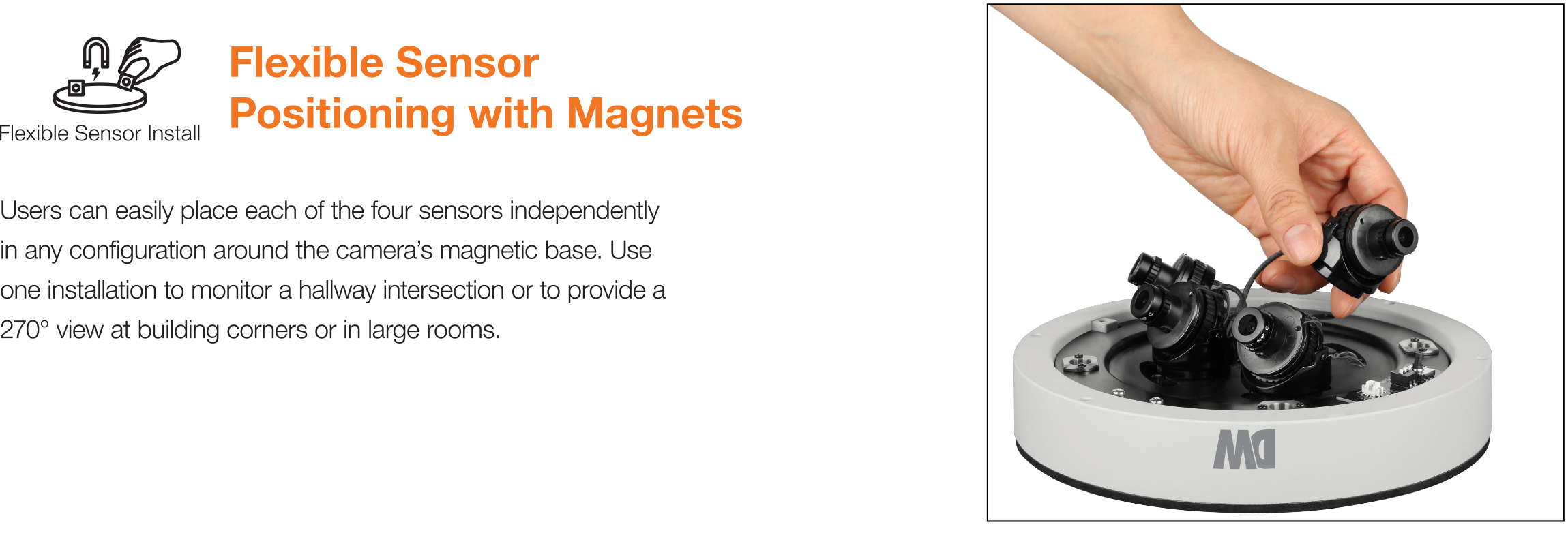

Flexible Sensor Positioning with Magnets
Users can easily place each of the four sensors independently in any configuration around the camera’s magnetic base. Use one installation to monitor a hallway intersection or to provide a 270° view at building corners or in large rooms.
Typical Installations
Flex cameras can be personalized to match any application and any field of view (FoV) from a 180° panoramic view installation to a full 360° hemispheric FoV, all with a single camera and max flexibility.
  • Analog High Definition (AHD) HD over Coax Technology
  • Four Cameras in One Installation
  • 4x 1/3” CMOS Sensors
  • Flexible Sensor Positioning with Magnets
  • 8 Megapixel Resolution at 30fps (4x 2.1MP)
  • Customizable 2.8mm, 4.0mm, 6.0mm and 8.0mm Lens Options
  • STAR-LIGHT™ Super Low Light Technology
  • Wide Dynamic Range (WDR)
  • True Day/Night Mechanical IR Cut Filter
  • OSD Control Via Coaxial (UTC)
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Secondary Video-BNC Output
  • Smart DNR™ 3D Digital Noise Reduction
  • Highlight Masking Exposure (HME)
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Auto White Balance (AWB)
  • RS-485 Built-in
  • Auto Sensing 24VAC/12VDC with Line Lock
  • De-Fog™ Extreme Weather Image Compensation
  • IP66 Certified (Weather Resistant)
  • 5 Year Warranty


Image sensor
4x 2.1MP 1/3” CMOS
Active pixels
4x 1944 (H) x 1092 (V)
Scanning system
Progressive scan
Frequency
60Hz / 50Hz
Signal technology
HD over Coax® technology with HD-Analog and all analog to 960H signal support
Synchronization
Internal
Resolution
8 megapixel (4x 1920x1080 sensors)
Minimum scene illumination
0.06 lux (Color)
0.01 lux (B&W)
S/N ratio
55dB
Video output
HD analog (4x 1080p at 30fps)
Alarm output
4 alarm outputs

LENS

Focal length
2.8mm, 4.0mm, 6.0mm, 8.0mm combination options
Lens type
Fixed lens

OPERATIONAL

Operational
x4 (below specs are per sensor)
Shutter speed
1/30-1/30,000
Backlight
On, off
Star-Light (sense-up)
Off, x2 – x32
Wide dynamic range (WDR)
On, Off
Digital noise reduction (DNR)
Off, low, middle, high
White balance
Auto / auto-ex / preset / manual
Day / night
Auto, day (color), night (B/W)
Mirror / flip
Yes
Auto gain control
Max 60dB
Motion detection
15 motion zones per camera, total 60 motion zones
Privacy zones
24 privacy zones per camera, total 96 privacy zones
Sharpness
0 ~ 10
Gamma
0.5
RS485 / UTP built-in
Pelco D / A-PC

ENVIRONMENTAL

Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
IP rating
IP66 certified weather and tamper resistant
Other certifications
FCC, CE, ROHS

ELECTRICAL

Power requirement
DC12V/AC24V dual voltage
Power consumption
DC12V: 8.36W, 696mA
AC24V: 8.36W, 348mA

MECHANICAL

Material
Aluminum vandal outdoor housing, polycarbonate dome
Dimensions
7.54" x 3.5" (191.6 x 89.5 mm)
Weight
4.4lbs (2kg)

Model #*

Description

DWC-VS753WT2222 (Default Model)Four 2.8mm Fixed Lenses
DWC-VS753WT2224Three 2.8mm, One 4.0mm Fixed Lenses
DWC-VS753WT2226Three 2.8mm, One 6.0mm Fixed Lenses
DWC-VS753WT2228Three 2.8mm, One 8.0mm Fixed Lenses
DWC-VS753WT2244Two 2.8mm, Two 4.0mm Fixed Lenses
DWC-VS753WT2246Two 2.8mm, One 4.0mm, One 6.0mm Fixed Lenses
DWC-VS753WT2248Two 2.8mm, One 4.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2266Two 2.8mm, Two 6.0mm Fixed Lenses
DWC-VS753WT2268Two 2.8mm, One 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2288Two 2.8mm, Two 8.0mm Fixed Lenses
DWC-VS753WT2444One 2.8mm, Three 4.0mm Fixed Lenses
DWC-VS753WT2446One 2.8mm, Two 4.0mm One 6.0mm Fixed Lenses
DWC-VS753WT2448One 2.8mm, Two 4.0mm One 8.0mm Fixed Lenses
DWC-VS753WT2466One 2.8mm, One 4.0mm, Two 6.0mm Fixed Lenses
DWC-VS753WT2468One 2.8mm, One 4.0mm, One 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2666One 2.8mm, Three 6.0mm Fixed Lenses
DWC-VS753WT2668One 2.8mm, Two 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT2688One 2.8mm, One 6.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT2888
One 2.8mm, Three 8.0mm Fixed Lenses
DWC-VS753WT4444 (Default Model)Four 4.0mm Fixed Lenses
DWC-VS753WT4446Three 4.0mm, One 6.0mm Fixed Lenses
DWC-VS753WT4448Three 4.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT4466Two 4.0mm, Two 6.0mm Fixed Lenses
DWC-VS753WT4468Two 4.0mm, One 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT4488Two 4.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT4666One 4.0mm, Three 6.0mm Fixed Lenses
DWC-VS753WT4668One 4.0mm, Two 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT4688One 4.0mm, One 6.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT6666Four 6.0mm Fixed Lenses
DWC-VS753WT6668Three 6.0mm, One 8.0mm Fixed Lenses
DWC-VS753WT6688Two 6.0mm, Two 8.0mm Fixed Lenses
DWC-VS753WT6888One 6.0mm, Three 8.0mm Flxed Lenses
DWC-VS753WT6888
Four 8.0mm Fixed Lenses
DWC-V1CNM
Corner Mount Bracket
DWC-PZCM
Outdoor Dome Ceiling Mount Bracket
DWC-PZWM
Outdoor Dome Wall Mount Bracket
DWC-PZADP
Parapet mount adapter for DWC-PZPARAM
DWC-PZPARAM
Parapet Mount Bracket
DWC-PMB-WL
Pole Mount Bracket
DW-BALUNHD
HD Video Balun Converter
Title Type Size Download
Camera Accessories Compatibility Chart pdf 3.88 MB
DWC-VS753WT Data Sheet pdf 0.48 MB
DWC-VS753WT Manual pdf 1.25 MB
DWC-VS753WT Sell Sheet pdf 3.40 MB
Frequently asked questions
Q. How to turn on WDR?
A. At the VMAX A1 DVR
  1. Right click and select PTZ controller
  2. Press Menu to access the camera's OSD
  3. Go to Exposure, Brightness and select WDR.
  4. Go to Exit Jump
  5. Select Save & Exit
Q. My camera has a spotlight effect at night.
A.
  1. Enter the Setup Menu
  2. Go to Day & Night
  3. Enable SMART IR and adjust the level
SMART IR adjusts the image for IR cameras to eliminate LED light reflection and white spots in the image. By breaking down the camera’s field of view into five zones, Smart IR allows for even distribution of the IR light. This prevents excessive illumination on images that are in the front of the scene and offers a clear image in B/W without any loss of detail.

Note:  This is best adjusted at night

Q. My Camera image is flashing/flickering
A.
  1. View the image to see if the environment has variable lighting
  2. If so, enable WDR or DRC in the camera’s menu
  3. If not, make sure power is sufficient and power cycle the camera
  4. Check cable and connectors

Wide Dynamic Range (WDR)

Wide Dynamic Range technology mechanically allows capturing an entire scene in challenging lighting conditions. One shutter is set to a short exposure, capturing the bright areas in the FoV, while the other is set for a long exposure, capturing the dark areas in the FoV. The camera then interlaces the images and combines them, capturing both areas with no loss of detail. This allows for an image capture even when there are very bright and dark areas in the camera’s field of view or images are distorted by a strong backlight.

  1. Enter camera's setup menu
  2. Go to Exposure
  3. Go to Backlight and select WDR
  4. Enter WDR submenu to adjust the level
  5. Save & Exit

Dynamic Range Compressor (DRC)

DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image

  1. Enter camera's setup menu
  2. Go to Exposure
  3. Select DRC
  4. Enter DRC submenu to adjust the level
  5. Save & Exit

Q. My camera is blurry at night but clear in the day
A.
  1. Check the lens cover for dirt, debris, scratches, smudges or residue
  2. Tilt camera away from or remove nearby reflective objects
  3. Make sure rubber gasket is present and correctly seated on lens
  4. Clean lens cover with water and dry microfiber cloth
Q. My camera is no longer producing video.
A.
  1. Confirm the physical connection on the dvr
  2. Switch with a known working camera
  3. Check power to the camera
  4. Check camera compatibility
  5. Check user rights
Q. My camera is stuck in Black & Whtie.
A.
  1. Make sure the camera is compatible with the dvr
  2. Make sure the camera is on the right signal
  3. Make sure the camera is getting sufficient light
  4. Make sure the light sensor is not obstructed.
  5. Move camera to a known working port. If problem follows the camera then the camera is the problem
  6. Enter the Camera's setup menu and make sure Day & Night is on Auto
  7. Factory default/Initialize the camera
  8. Bench test the camera with separate wiring and power
  9. Send in for repair if the problem persists.
Q. There are horizontal rolling bars on the monitor.
A.

This is a video ground loop due to more than one ground between camera and monitor/head-end

Ground Loop problems can be resolved by making sure that only one end of any video cable is
connected to a local ground. Make sure the video cable shields do not come into direct contact with
each other to prevent unintentional local grounding.

  1. Tape all connectors in such situations to minimize this risk.
  2. Keep camera runs as short as possible with all video cables cut to fit. Excess cable left along any run can increase the risk of interference.
  3. At the monitor end make sure all the CCTV equipment is connected to same power point to provide a common local ground.
  4. Implement a ground loop isolator
