Home Products DW-ILHYBIP940, DW-ILHYBIP850

DW-ILHYBIP940
DW-ILHYBIP850

SiteWatch IR and White Light LED IP-enabled hybrid illuminator
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Hybrid Infrared and white light LED illuminator
  • Interchangeable lens pack for a variety of angles out of the box
  • Direct integration with DW Spectrum® IPVMS
  • Create different elliptical beam profiles
  • Motion-activated
  • CleanView hydrophobic coating repels water, dust and grease
  • Activate white light to deter intruders
  • Remotely adjustable photocell and illumination levels
  • 850nm IR wavelength (DW-ILHYBIP850)
  • 940nm IR wavelength (DW-ILHYBIP940)
  • Ultra-white ≈ 6000K white light
  • 66-614ft IR coverage
  • 94-374ft white light coverage
  • Vibration/knock sensor
  • Web interface built-in
  • High-power Dual-Core LED’s with advanced, current limited and integral control circuitry
  • NDAA/TAA compliant
    • Show More

Learn about how DW
solutions can work for you

View All Markets

SiteWatch™ perimeter protection

Combine the motion detectors, illuminators and horn speaker to react to events in real-time and enhance the camera’s recordings, all controlled via DW Spectrum® IPVMS.

Amplify panoramic surveillance

Combine detectors and illuminators with MEGApix® Pano™ multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.

Interchangeable lens diffuser kit

Each SiteWatch™ illuminator is supplied with an interchangeable lens diffuser kit, allowing installers to easily change the angle of illumination and align perfectly with the camera’s field of view.

Specifications

Performance
Color rendering index (CRI) >70
Color temperature Ultra white ≈ 6000K
Detection range Up to 98.5ft (30m) programmable
Electronics High efficiency surface mount high power Dual-Core™ LEDs with advanced, current limited, integral control circuity.
Illumination Adjustable 10% - 100%, Software adjustable
Lumen output 1800 lm+
Performance Remote software DW Spectrum® IPVMS
Performance Web viewer No software or installation needed, Web browser user interface
Photocell Adjustable 20 - 70 lux, Software adjustable
Wavelength 850nm (semi-covert). Faint red glow (DW-ILHYBIP850), 940nm (covert). Minimal visible glow (DW-ILHYBIP940)
Electrical
Power Consumption 26W
Power Requirements PoE+ (IEEE802.3at)
General
Certification CE, FCC
Housing Robust high-quality aluminum extrusion
IK rating IK09 impact-resistant in accordance with IEC/EN 62262
IP rating IP66-rated in accordance with IEC/EN 60529
Mount Powder coated stainless steel wall mount
Operating temperature -58°F to 122°F (-50°C to 50°C)
Power cable 1m with IP68 connector (not included)
Recommended PSU Any IEEE 802.3at injector (not included)
Recorder Dimensions (H X W X D) 4.33" x 6.34" x 3.07" (110 x 161 x 78mm)
Weight 3 lbs (1.35 kg)

Accessories

DW-ILWM1
Mounting bracket for SiteWatch™ illuminators
Learn more
DW-ILWM2
Mounting bracket for SiteWatch™ illuminators
Learn more
DW-ILWM3
Mounting bracket for SiteWatch™ illuminators
Learn more
DW-ILPM1
Pole mount bracket for SiteWatch™ illuminators
Learn more

Videos

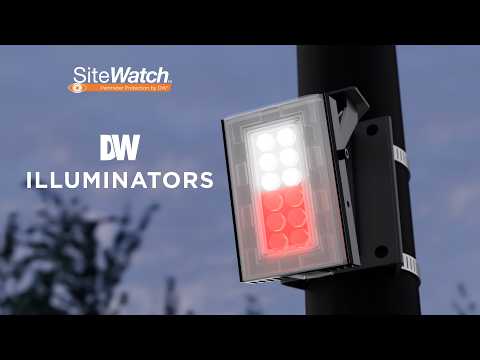

February 26, 2021 Works with DW Spectrum® IPVMS Webinar Recording: Illuminators
May 22, 2020 Works with DW Spectrum® IPVMS Webinar Recording: DW® Illuminators and Motion Detectors

Videos

February 26, 2021 Works with DW Spectrum® IPVMS Webinar Recording: Illuminators
May 22, 2020 Works with DW Spectrum® IPVMS Webinar Recording: DW® Illuminators and Motion Detectors

Documents

Title Type
DW Accessories Chart
pdf Download
DW-ILHYBIP940_850 CAD drawing
dwg Download
DW-ILHYBIP940_850 datasheet
pdf Download
NightWatch™ illuminators user manual
pdf Download
SiteWatch Perimeter Protection Brochure
pdf Download
SiteWatch™ illuminators quick setup guide
pdf Download
View All Documents

Software

Title Type Release Notes Version Update Date Compatibility Size
DW-ILHYBIPxx0 firmware v.1.5 bin - v1.5 12/10/2020 0.45 MB Download
View All Software
