Home IP Cameras DWC-MVA5Wi28T, DWC-MPVA5Wi28T

DWC-MVA5Wi28T
DWC-MPVA5Wi28T

MEGApix IVA 5MP vandal ball turret IP camera with fixed lens, IR and IVA
Find a Reseller Request a Demo Contact Us FAQs
NDAA
Features
  • 5MP 1/2.8" image sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • Intelligent Video Analytics (IVA pre-loaded models)
  • Extended Intelligent Video Analytics (IVA+ pre-loaded models)
  • Seamless integration and control of IVA rules with DW Spectrum® IPVMS
  • Reduce false alarms
  • Increase your recording storage with logic rules and smart recording
  • 2.8mm fixed lens
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • 100' Smart IR™ with intelligent camera sync and no IR reflection
  • Vandal turret housing reduces IR reflection with true 90° tilting and 360° rotation
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
    • Show More

IVA Analytics

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

LEARN MORE

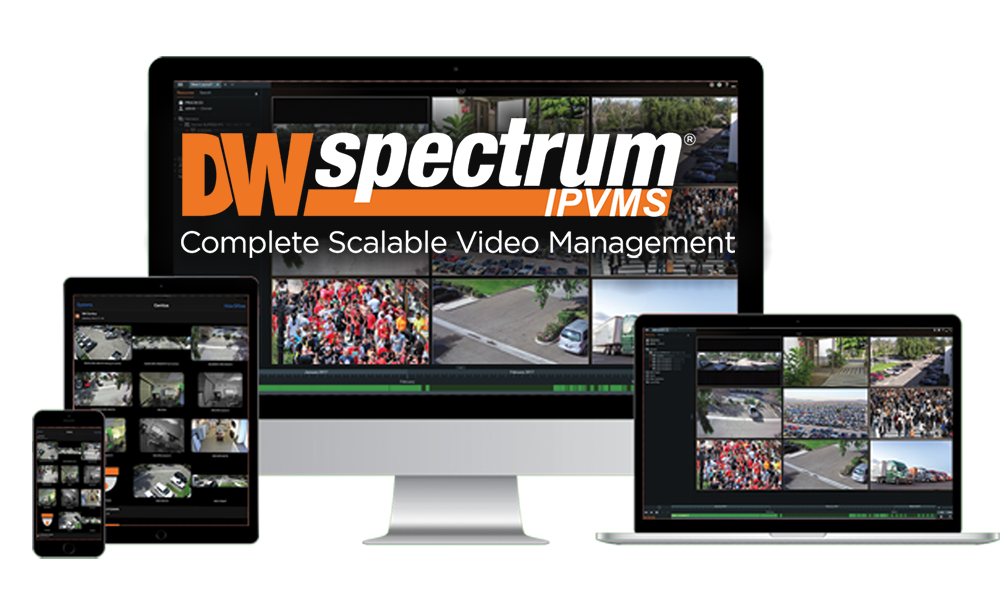

IVA integrates seamlessly with DW Spectrum® IPVMS

MEGApix IVA analytics are seamlessly integrated with DW Spectrum IPVMS for easy configuration, real-time alerts and automatic notifications.
Learn more.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Vandal turret housing

The vandal turret cameras have a unique dome-free design that allows for a true 90° tilting angle with endless 360° panning and rotation.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

Specifications

Image sensor 5MP 1/2.8" CMOS sensor
Maximum resolution 5MP
Minimum Scene Illumination in color 0.13 lux (color), 0.0 lux (B/W)
Test Video Output Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels 2592 (H) × 1944 (V)
Lens
Focal Length 2.8mm
Horizontal Field of View (HFOV) 103°
IR Distance 100' range Smart IR™
Lens Type Fixed Lens
Vertical Field of View (VFOV) 78°
Intelligent Video Analytics
IVA license Intrusion, line crossing, counting line, loitering, enter, exit, tamper
IVA+ license Logical rules, object removed, tailgating, direction, stopped, appear, disappear, object left
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Backlight compensation (BLC) Yes
Day and night Auto day/night, Day (color), Night (B/W)
De-fog Yes
Memory slot Micro SD/SDHC/SDXC class 10 card (card not included), Upto 1TB micro SD / exFAT
Mirror/flip Yes
Motion Detection Yes
Operational features Star-Light Plus, True D/N
Operational Notifications Email, Alarm output activation, SD card recording
Privacy Zones 16 programmable privacy masks
Shutter Mode Auto, Manual, Slow Shutter
Shutter Speed 8 ~ 1/50000
Slow Shutter Speed Off, x2, x3, x4, x5, x6, x7.5, x15
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
IP IPv4
Network resolution H.265: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, H.264: 3008x3000, 2800x2800, 2048x2048, 1600x1600, 640x640, 320x320, H.264: 2.1MP/1080p, 720p (main), CIF (sub), MJPEG: CIF
Network Web Viewer Windows® OS, Mac® OS, Linux® OS, Internet Explorer® browser, Google Chrome® browser, Mozilla Firefox® browser, Safari® browser
Protocol Bonjour, DDNS, DHCP, DNS, Genetec Protocol, HTTP, HTTPs, ICMP, IGMP, NTP, RTP, RTP (UDP/TCP), RTSP, SNMP, SNMPv1/v2/v3 (MIB-2), TCP, Telnet, UPnP, Zeroconf (AutoIP)
Security HTTPS (TLS), MAC filtering, 802.1x, Multi-user authority
Stream Speed Up to 20fps at 5760 X 1080 resolution
Streaming Capability Dual-stream at different rates and resolutions
Video Bitrate 32Kbps~20Mbps
Video Compression Type H.264, H.265, MJPEG
Video Management Software DW Spectrum® IPVMS
Environmental
Compliance NDAA Compliance, UL Listing  CE, FCC, RoHS, ONVIF
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) 4.92" x 4.8" (125 x 122 mm)
Housing Vandal ball turret, Turret
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Weight 1.76 lbs (0.8kg)
Electrical
Power Consumption DC12V: max 6.5W, 541.6mA, PoE: max 7.8W
Power Requirements PoE, IEEE 802.3af Class 3, (Adapter not included), 12V DC

Part Numbers

Part Number Description
DWC-MVA5Wi28T preloaded with IVA.
DWC-MPVA5Wi28T preloaded with IVA+.

Accessories

DWC-VACM
Ceiling mount bracket for vandal ball turret cameras
Learn more
DWC-GPLT-W
Converter plate for electronic gang box
Learn more
DWC-VAJUNC
Junction box for vandal ball turret cameras
Learn more
DWC-WMJUNCW
Junction box for wall mount brackets
Learn more
DWC-PMB-WLW
Pole mount bracket
Learn more
DWC-VAWM
Wall mount bracket for vandal ball cameras
Learn more

Documents

Title Type
Camera part numbering system
pdf Download
DW Accessories Chart
pdf Download
DWC-M(P)VA series quick setup guide
pdf Download
DWC-MPVA5Wi28T CAD drawing
dwg Download
DWC-MPVA5Wi28T datasheet
pdf Download
DWC-MPVA5Wi28TW UL certificate
pdf Download
DWC-MVA5Wi28T AE specifications
doc Download
DWC-MVA5Wi28T CAD drawing
dwg Download
DWC-MVA5Wi28T datasheet
pdf Download
DWC-MVA5Wi28T datasheet - Spanish
pdf Download
DWC-MVA5Wi28T UL certificate
pdf Download
DWC-MVA5Wi28T_DWC-MPVA5Wi28T series user manual
pdf Download
MEGApix IVA user manual - rules and analytics
pdf Download
MEGApix Single-Sensor Brochure
pdf Download
View All Documents

Software

Title Type Release Notes Version Upload Date Compatibility Size
DW IP Finder v4.4.15 for Linux OS run v4.4.15 09/28/2022 47.98 MB Download
DW IP Finder v4.4.16 for Windows OS exe - v4.4.16 11/17/2022 Windows OS 27.64 MB Download
IVA and IVA+ plugin v.1.0.34b zip v.1.0.34b 12/08/2022 10.67 MB Download
MEGApix® 5MP firmware vA13.2.2_20210608 img - vA13.2.2_20210608 08/31/2021 5MP vandal ball cameras 23.72 MB Download
