DW-BJP2UxT

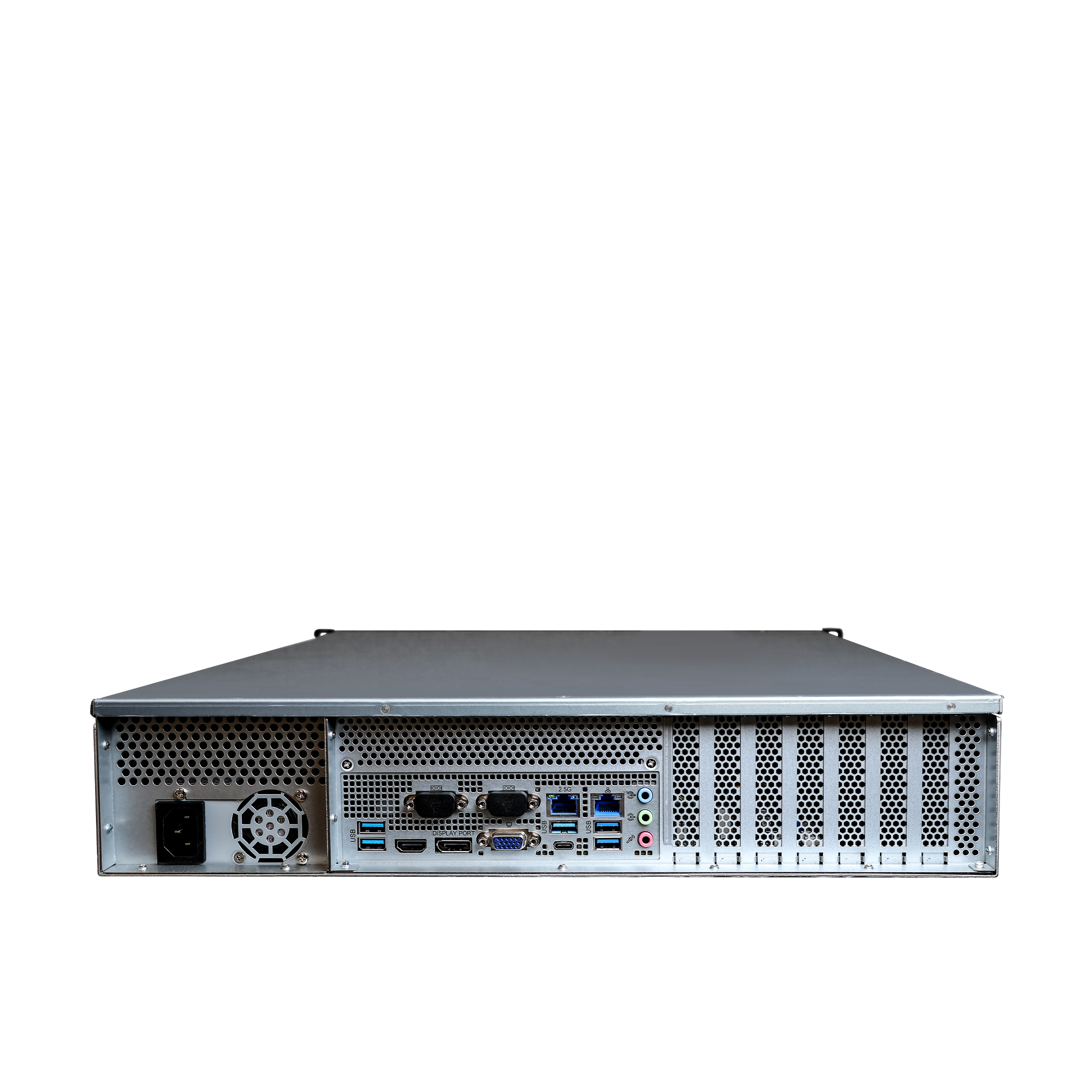

Blackjack P-Racl 2U Rackmount Server powred by DW Spectrum IPVMS, up to 120TB Storage | DW Intelligent Surveillance Solutions
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Effortless Video Management: Includes DW Spectrum™ and four recording licenses.
  • Enterprise-Grade Performance - Supports up to 600Mbps throughput, ideal for managing high-resolution, multi-sensor IP cameras in demanding environments.
  • Efficient Performance: Powered by an Intel® i7® processor and 16GB RAM, delivering smooth and reliable operation.
  • Flexible OS Options - Customers can choose between Windows 11 IoT or Linux Ubuntu LTS, both installed on dedicated SSDs for optimal performance and reliability.
  • Massive Storage Capacity - Offers configurations up to 120TB , ensuring both scalability and long-term video retention.
  • Cross-Platform Access: Compatible with Windows® and Mac® clients, offering flexibility for diverse IT environments.
  • Cloud-Ready Conversion - Each license can be converted into a 24-month DW Spectrum Enterprise subscription, offering cloud-centric usability and remote access benefits.
  • Turnkey Deployment - Includes a rail kit, USB mouse, and keyboard, making installation fast and hassle-free.
  • NDAA/TAA Compliance - Fully compliant for use in government and regulated industries, expanding your customer base to federal and public sector clients
  • Peace of Mind: Backed by a 5-Year Limited Warranty, ensuring long-term support and confidence.

Learn about how DW
solutions can work for you

View All Markets

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.

DW Spectrum

DW Spectrum is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

Specifications

Hardware
CPU Intel i7® processor
Display Speed Up to 30fps per channel
Local Video Output Resolution D-Sub: 1920x1200 @ 60Hz
DisplayPort: 4096 x 2160 (DCI 4K) @ 60Hz
True HD: 4096 x 2160 (DCI 4K) @ 60Hz
Local Video Outputs 1x D-Sub output
1x DisplayPort output
1x True HD output
1 display output at a time
For initial configuration and server management
Memory 16GB
Server's Operating System Windows 11 IoT LTSC (DW-BJP2U40T, DW-BJP2U60T, DW-BJP2U100T, DW-BJP2U120T, DW-BJP2U80T)
Linux Ubuntu 22.04 LTS (DW-BJP2U40T-LX, DW-BJP2U60T-LX, DW-BJP2U100T-LX, DW-BJP2U120T-LX, DW-BJP2U80T-LX)
Video Card On-board Intel Graphics
Video Compression H.264
H.265
OS on SSD 480GB SSD
Max throughput (Mbps) 600Mbps
Storage
Raw internal storage options 040TB  060TB  080TB  100TB  120TB
RAID Options No RAID
Max HDD Bay 6 x SATA HDD
Maximum Storage 40TB (DW-BJP2U40T, DW-BJP2U40T-LX)
60TB (DW-BJP2U60T, DW-BJP2U60T-LX)
80TB (DW-BJP2U80T, DW-BJP2U80T-LX)
100TB (DW-BJP2U100T, DW-BJP2U100T-LX)
120TB (DW-BJP2U120T, DW-BJP2U120T-LX)
VMS features
Playback Functions Calendar
Event search
Smart motion search
Thumbnail search
Timeline
PTZ control ONVIF
Recording Modes Continuous
Motion + low res always
Motion + Object
Motion + Object + Low res
Motion detection
Object + Low res
Object only
System Operation Graphical user interface (GUI)
Remote via DW Spectrum
USB mouse (included)
Network
Ethernet Ports 2 x 2.5GbE ethernet ports (RJ45)
Pre-loaded VMS software DW Spectrum®
Remote Client Cross-platform - Windows, Linux Ubuntu and Mac
DW Mobile+
DW Spectrum Mobile App
Electrical
Power Consumption 400W
A UPS is recommended
General
Accessories Keyboard
Mouse
Included IP licenses 4 (DW-SPECTRUMLSC004)
Operating Temperature and Humidity 20 ~ 90% RH
41 ~ 104 °F (5~40 °C)
Rail kit Included
Recorder Dimensions (H X W X D) 3.5” x 17.29" x 21.93" (88.9 x 439.3 x 557.1 mm)
Recording Licenses (Optional. Sold Separately) Convert each recording license into a 24-month subscription for cloud-centric DW Spectrum Enterprise. Take advantage of cloud-exclusive usability and convenience.
Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall License
Lifetime upgrades are included with no annual renewal fees.
USB interface Yes
Warranty 5 Year Limited Warranty
Weight (barebone, HDD not included) 40.95 lbs (18.57 kg)
Certification CE  FCC  NDAA  ONVIF Conformant  TAA Compliance
Form Factor Rack mount

Part Numbers

Model #*

Storage Size

DW-BJP2U40T
40TB
DW-BJP2U60T
60TB
DW-BJP2U80T
80TB
DW-BJP2U100T
100TB
DW-BJP2U120T
120TB
* For Linux OS models, add -LX at the end of the part number.
