2.1MP Indoor/Outdoor Universal HD over Coax® Snapit™ Dome Camera
Model: DWC-V4283WD
Star-Light™ Universal HD over COAX® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. Our unique Snapit™ housing is IP68 rated and makes installation a snap!. Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX A1™ Universal HD over Coax® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.
  • DWC-V4283WD

Universal HD Coax® Technology supports All
HD-Analog and All Analog to 960H
The Universal HD® Complete Solutions are the best way to upgrade an existing analog solution to high definition. Universal HD supports HD-Analog, HD-TVI, HD-CVI and CVBS analog signals to 960H.
CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease
DW®'s new CleanView™ dome enclosures repel water and dust to maintain a camera's image quality. A technologically-advanced coating alleviates spotting and smudges that can affect the performance of the camera.

Click here to learn more about the CleanView™ process
Cold Start
Our upgraded Snapit™ and B4 models come with a heater built into the camera module. This heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.
  • Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
  • STAR-LIGHT™ Super Low Light Technology
  • 2.1MP 1/3" Image Sensor at Real-time 30fps
  • 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
  • True Wide Dynamic Range (WDR)
  • OSD Control Via Coaxial (UTC)
  • Snapit™ Easy Installation Housing
  • CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease
  • Cold Start -40°F (-40°C)
  • Smart DNR™ 3D Digital Noise Reduction
  • De-Fog™ Extreme Weather Image Compensation
  • Highlight Masking Exposure (HME)
  • Auto Sensing 24VAC/12VDC with Line Lock
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • UTP Built-In
  • Junction Box Built-in
  • RS-485 Built-in
  • IP68 Certified Water and Tamper Resistant
  • IK-10 Impact Rated
  • 5 Year Warranty


Image sensor
2.1MP/1080p 1/3" CMOS
Active pixels
1944 (H) x 1092 (V)
Scanning system
Progressive scan
Frequency
60Hz / 50Hz
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization
Internal
Resolution
1920 x 1080 (1080p)
Minimum scene illumination
0.3 lux (color)
S/N ratio
55dB
Video output
HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H

I/O

Alarm output
1 alarm output

LENS

Focal length
2.8 ~ 12mm
Lens type
Motorized zoom auto-focus p-iris lens
Field of view (FoV)
91 - 28°

OPERATIONAL

Shutter mode
Auto, manual, FLC
Shutter speed
1/30-1/30,000
Backlight
On, off
Star-Light (sense-up)
Off, x2 – x32
Wide dynamic range (WDR)
True WDR, off, on
Wide dynamic range (WDR) dB
100dB
Dynamic range compressor (DRC)
Off, low, middle, high
Smart DNR™ 3D digital noise reduction
Off, low, middle, high
White balance
Auto / auto-ex / preset / manual
Day / night
Auto, day (color), night (B/W)
Mirror / flip
Yes
Auto gain control
0~10
Motion detection
Yes
Privacy zones
16 programmable privacy zones
Sharpness
0 ~ 10
Gamma
0.45 ~ 0.75
De-fog
On, off
RS485 / UTP built-in
Pelco D / Pelco C

ENVIRONMENTAL

Operating temperature
-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
IP rating
IP68 Certified Water and Tamper Resistant
IK rating
IK10-rated impact resistant
Other certifications
FCC, CE, ROHS

ELECTRICAL

Power requirement
DC12V/AC24V dual voltage
Power consumption
DC12V: 3.0W
AC24V: 2.3W

MECHANICAL

Material
Snapit™ Aluminum Vandal Housing, Polycarbonate Dome
Dimensions
5.47" x 4.79" (139 x 121.8 mm)
Weight
2.05lbs (0.93kg)
DWC-V4CM
Ceiling mount bracket for Snapit™ outdoor dome cameras
DWC-GPLT
Converter plate for electronic gang box - ivory
DWC-GPLT-W
Converter plate for electronic gang box - white

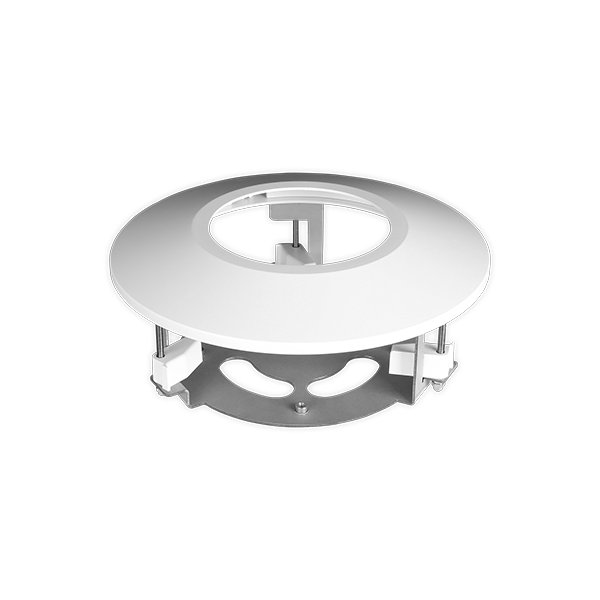

DWC-FMSNAP
Flush mount bracket for Snapit™ outdoor dome cameras
DWC-V4SSLD
Sunshield cover for Snapit™ outdoor dome cameras

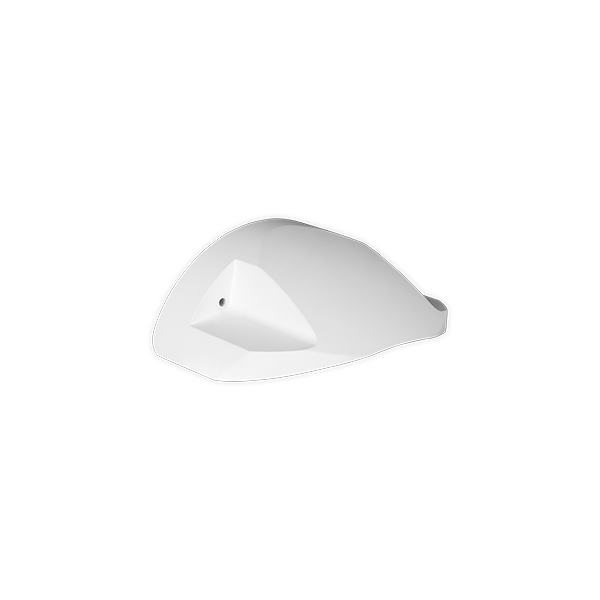

DWC-V4WM
Wall mount bracket for Snapit™ outdoor dome cameras
Title Type Size Download
Camera Accessories Compatibility Chart pdf 3.88 MB
DWC-V4283WD Data Sheet pdf 0.43 MB
DWC-V4283WD Data Sheet - Spanish pdf 0.71 MB
DWC-V4283WD_TIR Manual pdf 18.43 MB
STAR-LIGHT Universal HD over Coax Sell Sheet pdf 1.37 MB
DWC-V4283WD CAD Drawing dwg 0.10 MB
Frequently asked questions
Q. How do I get communication from coax?
A.
  1. Camera must be connected to a Vmax A1 dvr or HD-TVI dvr to have coax communication
  2. Camera has 2 video cables make sure to use blue cable for TVI.AHD signal and coax communication
Q. How to turn on WDR?
A. At the VMAX A1 DVR
  1. Right click and select PTZ controller
  2. Press Menu to access the camera's OSD
  3. Go to Exposure, Brightness and select WDR.
  4. Go to Exit Jump
  5. Select Save & Exit
Q. My camera has a spotlight effect at night.
A.
  1. Enter the Setup Menu
  2. Go to Day & Night
  3. Enable SMART IR and adjust the level
SMART IR adjusts the image for IR cameras to eliminate LED light reflection and white spots in the image. By breaking down the camera’s field of view into five zones, Smart IR allows for even distribution of the IR light. This prevents excessive illumination on images that are in the front of the scene and offers a clear image in B/W without any loss of detail.

Note:  This is best adjusted at night

Q. My Camera image is flashing/flickering
A.
  1. View the image to see if the environment has variable lighting
  2. If so, enable WDR or DRC in the camera’s menu
  3. If not, make sure power is sufficient and power cycle the camera
  4. Check cable and connectors

Wide Dynamic Range (WDR)

Wide Dynamic Range technology mechanically allows capturing an entire scene in challenging lighting conditions. One shutter is set to a short exposure, capturing the bright areas in the FoV, while the other is set for a long exposure, capturing the dark areas in the FoV. The camera then interlaces the images and combines them, capturing both areas with no loss of detail. This allows for an image capture even when there are very bright and dark areas in the camera’s field of view or images are distorted by a strong backlight.

  1. Enter camera's setup menu
  2. Go to Exposure
  3. Go to Backlight and select WDR
  4. Enter WDR submenu to adjust the level
  5. Save & Exit

Dynamic Range Compressor (DRC)

DRC enables dark areas in images to become more visible without overexposing the bright areas to create one perfect image

  1. Enter camera's setup menu
  2. Go to Exposure
  3. Select DRC
  4. Enter DRC submenu to adjust the level
  5. Save & Exit

Q. My camera is blurry at night but clear in the day
A.
  1. Check the lens cover for dirt, debris, scratches, smudges or residue
  2. Tilt camera away from or remove nearby reflective objects
  3. Make sure rubber gasket is present and correctly seated on lens
  4. Clean lens cover with water and dry microfiber cloth
Q. My camera is no longer producing video.
A.
  1. Confirm the physical connection on the dvr
  2. Switch with a known working camera
  3. Check power to the camera
  4. Check camera compatibility
  5. Check user rights
Q. My camera is stuck in Black & Whtie.
A.
  1. Make sure the camera is compatible with the dvr
  2. Make sure the camera is on the right signal
  3. Make sure the camera is getting sufficient light
  4. Make sure the light sensor is not obstructed.
  5. Move camera to a known working port. If problem follows the camera then the camera is the problem
  6. Enter the Camera's setup menu and make sure Day & Night is on Auto
  7. Factory default/Initialize the camera
  8. Bench test the camera with separate wiring and power
  9. Send in for repair if the problem persists.
Q. There are horizontal rolling bars on the monitor.
A.

This is a video ground loop due to more than one ground between camera and monitor/head-end

Ground Loop problems can be resolved by making sure that only one end of any video cable is
connected to a local ground. Make sure the video cable shields do not come into direct contact with
each other to prevent unintentional local grounding.

  1. Tape all connectors in such situations to minimize this risk.
  2. Keep camera runs as short as possible with all video cables cut to fit. Excess cable left along any run can increase the risk of interference.
  3. At the monitor end make sure all the CCTV equipment is connected to same power point to provide a common local ground.
  4. Implement a ground loop isolator
