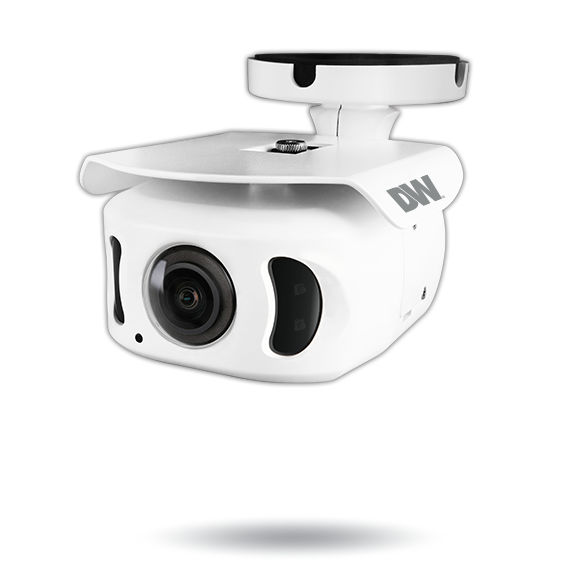

DWC-XSBC08Bi

MEGApix Ai 4K bullet IP camera with ultra-wide fixed lens and IR
Features
  • 4K 1/1.8” image sensor at real-time 30fps
  • Star-Light Plus™ color in near-total darkness technology
  • Ai Deep Learning object detection on one channel
  • Create up to 40 detection zones in the same camera
  • Easy setup with no analytics calibration
  • Seamless integration and control with DW Spectrum® IPVMS
  • Reduce false alarms
  • Increase your recording storage with logic rules and smart recording
  • 2.3mm ultra-wide lens
  • True Wide Dynamic Range (WDR)
  • Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
  • Cold Start -40°F (-40°C) (DC power)
  • 100’ Smart IR™ with intelligent camera sync
  • Smart DNR™ 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Auto gain control (AGC)
  • Auto white balance (AWB)
  • Show More

Easy setup (no analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Object Classification

DW's Ai software processes video streams to detect and classify every object appearing in the detection zone. Our Deep Learning engines perform object detection (DL Object tracker), automatically classifying the objects in the scene: people, cyclists, cars, buses and vans, trucks, motorcycles, bicycles and bags.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Ambarella CV22 chip with CVflow®

Ambarella’s CV22S chip combines image processing, real-time 30fps 4K video encoding and CVflow® architecture to provide the deep neural network (DNN) processing required for the next generation of intelligent IP cameras.

Deep Learning

MEGApix Ai intelligent algorithms offer deep learning with better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

Reduce false alarms

MGApix Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Ai Analytics and deep learning

DW Ai solutions include all the Intelligent Video Analytics and advanced Video Content Analysis detection capabilities of the Ai engine. In addition, Ai servers empower users with deep learning objects and people tracking and color filters.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Ultra-wide view for situational awareness

Ideal ROI with a single camera replacing multiple cameras to capture large areas.

Narrow installations with near-camera coverage

The camera’s unique focal length is suitable for narrow corridor installations, with clear images as close as 19.5~23.5 inches from the camera.

Specifications

Active Pixels 3840 (H) x 2160 (V)
Frequency 50Hz
Image sensor 4K 1/1.8" CMOS sensor
Maximum resolution 4K
Minimum Scene Illumination in color 0.15 lux (color), 0.0 lux (B/W)
Test Video Output Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels 3856 (H) X 2200 (V)
Lens
Focal Length 2.3mm
Horizontal Field of View (HFOV) 175°
IR Distance 100' range Smart IR™
Lens Type Fixed Lens
Vertical Field of View (VFOV) 80°
I/O
Audio compression G.711 ulaw
Event triggers Illegal login, Motion Alarm, Network disconnection, Sensor detection, Temperature anomaly
I/O Alarm in/out 1 input, 1 output
I/O Audio in/out 1 input, 1 output
Intelligent Video Analytics
Deep learning analytics Deep Learning object tracking
Analytics filters Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Auto day/night, Day (color), Night (B/W)
De-fog Yes
Memory slot Micro SD/SDHC/SDXC class 10 card (card not included), Up to 1TB micro SD / FAT32
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Alarm output activation, Email, FTP server, SD card recording
Sharpness Yes
Shutter Mode Anti-Flicker, Auto, Manual, Slow Shutter
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off, x10, x2, x3, x5, x6, x7.5
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
IP IPv4
LAN 1000Base-T (1Gbps)
Network resolution H.264: 3840x2160, 2592x1944, 2560x1440, 1920x1080, 1280x720, 640x480, 640x360, 352x288, 352x240, H.265: 3840x2160, 2592x1944, 2560x1440, 1920x1080, 1280x720, 640x480, 640x360, 352x288, 352x240, MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
Network Web Viewer Google Chrome® browser, Linux® OS, Mac® OS, Microsoft Edge® browser, Mozilla Firefox® browser, Safari® browser, Windows® OS
Protocol DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, NTP, ONVIF, RTP (UDP/TCP), RTSP, SMTP, SNMPv1/v2/v3 (MIB-2), SSL, TCP/IP, UDP, Zeroconf (AutoIP)
Security 802.1x, Digest authemtication (ID/PW), HTTPS (TLS), IP filtering
Stream Speed Up to 30fps at all resolutions
Streaming Capability Triple Streaming (3rd stream supports MJPEG only)
Video Bitrate 100Kbps ~ 25Mbps, multi-rate for preview and recording
Video Compression Type H.264, H.265, MJPEG
Video Management Software Any ONVIF conformant CMS, DW Spectrum® IPVMS
Environmental
Compliance CE  FCC  NDAA Compliance  ONVIF  TAA Compliance  UL Listing
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature PoE: -4°F-122°F (-20°C-50°C), -40°F ~ 122°F (-40°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) *Dimensions based on the position of the sun shield cover, 5.03" x 8.75" x 3.8" (127.9 x 222.5 x 96.7 mm)
Camera Weight 2.13 lbs (0.97 kg)
Housing Bullet, Panoramic
Housing Color White
IK rating IK09 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) 30M, Cable type #18
Power Consumption DC12V: max 21.9W, 1.83A, PoE: max 9.2W, 190mA
Power Requirements (Adapter not included), IEEE 802.3af Class 3, PoE
General
Warranty 5 Year Warranty
