Home HD over Coax Cameras DWC-B6563WTIRW

DWC-B6563WTIRW

Star-Light Plus 5MP UHDoC bullet camera with a vari-focal lens and IR
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/2.8" image sensor
  • 5MP at 20fps, 4MP at real-time 30fps
  • 2.7~13.5mm vari-focal p-iris lens
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • 100' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Auto-sensing 24VAC/12VDC with line lock
  • Easy icon-driven OSD menu with built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
    • Show More

Learn about how DW
solutions can work for you

View All Markets

Megapixel resolution

DW’s technology delivers crystal-clear images in resolutions up to 5MP over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.

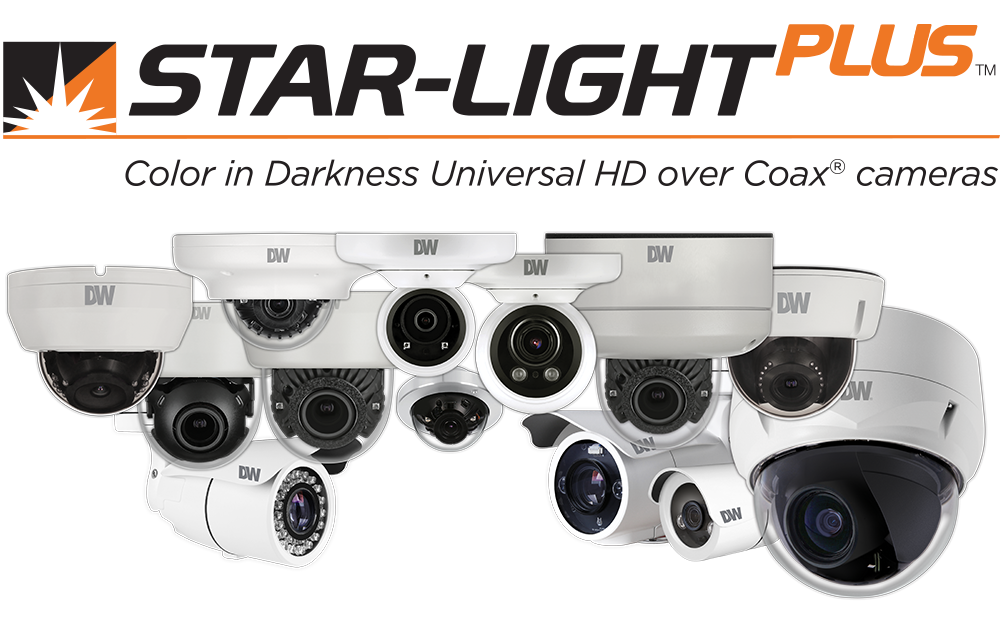

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Universal HD over Coax® Technology

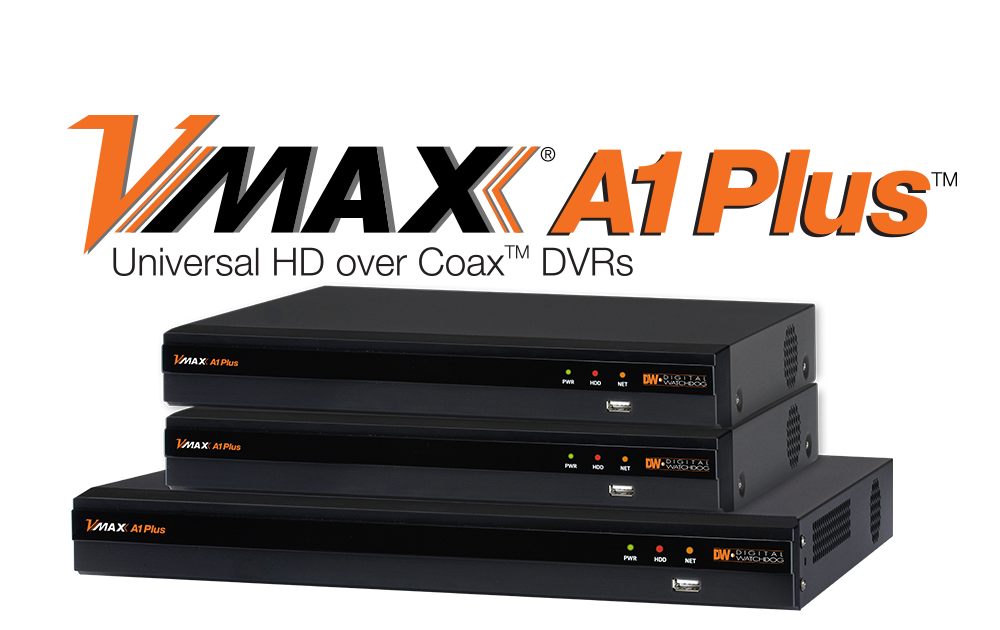

Universal HD over Coax® Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax® cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.

Specifications

Active Pixels 2608 (H) x 1960 (V)
Frequency 50Hz
60Hz
Image sensor 5MP 1/2.8" CMOS sensor
Maximum resolution 5MP
Analog CVBS: Up to 960H @ 30fps
HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps
HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fp
HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps
HD-Analog, HD-TVI and HD-CVI: 720p @ 30fp
Minimum Scene Illumination in color 0.0 lux (B/W)
0.08 lux (color)
Scanning System Progressive scan
Signal technology CVBS up to 960H
HD-Analog
HD-CVI
HD-TVI
Universal HD over Coax® technology
Test Video Output CVBS video output for testing
Lens
Advanced Lens Features P-iris
Focal Length 2.7mm ~ 13.5mm
Horizontal Field of View (HFOV) 102° ~ 31.4°
Illumination Distance 100' range Smart IR™
Lens Type Vari-focal Lens
Vertical Field of View (VFOV) 73.9° ~ 23.3°
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Backlight compensation (BLC) Yes
Camera Control Pelco C
UTC
UTP built-in
Day and night Auto day/night
Day (color)
Night (B/W)
De-fog Yes
Gamma 0.45
Mirror/flip Yes
Motion Detection Yes
Privacy Zones 24 programmable provacy zones
Sharpness Yes
Shutter Mode Auto
Shutter Speed 1/30 ~ 1/30000
Star-Light (sense up) Off
x2-x32
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Environmental
Compliance CE  FCC  NDAA Comp
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) *Dimensions based on the position of the sun shield cover
8.83" x 3.8" (224.5 x 96.7 mm)
Camera Weight 1.65 lbs (0.75kg)
Housing Bullet
Housing Color White
IP rating Weather Resistant (IP66)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) Cable type #18
Power Consumption AC24V (LED on): 4.4W, 183.3mA
AC24V (no LED): 2.86W, 119.1mA
DC12V (LED On): 5.0W, 420mA
DC12V (no LED): 3.3W, 275mA
Power Requirements 24 V AC
General
Warranty 5 Year Warranty

Accessories

DWC-V1CNMW
Corner and pole mount bracket - White
Learn more
DWC-BLJUNC-W
Junction box for white bullet cameras - white
Learn more
DWC-PMB-WLW
Pole mount bracket - white
Learn more

Documents

Title Type
DWC-B6563WTIRW datasheet - French
pdf Download
DWC-B6563WTIRW datasheet - Spanish
pdf Download
DWC-B6563WTIRW datasheet
pdf Download
DWC-B6563WTIRW quick setup guide
pdf Download
DWC-B6563WTIR_W AE specifications
doc Download
DW Accessories Chart
pdf Download
Star-Light Plus brochure
pdf Download
DWC-B6563WTIR_W CAD drawings
dwg Download
DWC-B6563WTIR_W user manual
pdf Download
View All Documents
