Home HD over Coax Cameras DWC-D3563WTIR

DWC-D3563WTIR

Star-Light 5MP UHDoC indoor dome camera with a vari-focal lens and IR
Find a Reseller Request a Demo Contact Us FAQs
NDAA
Features
  • Universal HD over Coax® technology with HD-Analog, HD-TVI and HD-CVI signal support
  • Star-Light Plus™ color in near-total darkness technology
  • 1/2.8" image sensor
  • 5MP at 20fps, 4MP at real-time 30fps
  • 2.7~13.5mm vari-focal p-iris lens
  • True wide dynamic range (WDR)
  • OSD control via coaxial (UTC)
  • 100' Smart IR™ with intelligent camera sync.
  • Smart DNR™ 3D digital noise reduction
  • True day/night mechanical IR cut filter
  • De-Fog™ extreme weather image compensation
  • Auto-sensing 24VAC/12VDC with line lock
  • Easy icon-driven OSD menu with built-in joystick
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
    • Show More

Megapixel resolution

DW’s technology delivers crystal-clear images in resolutions up to 5MP over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.

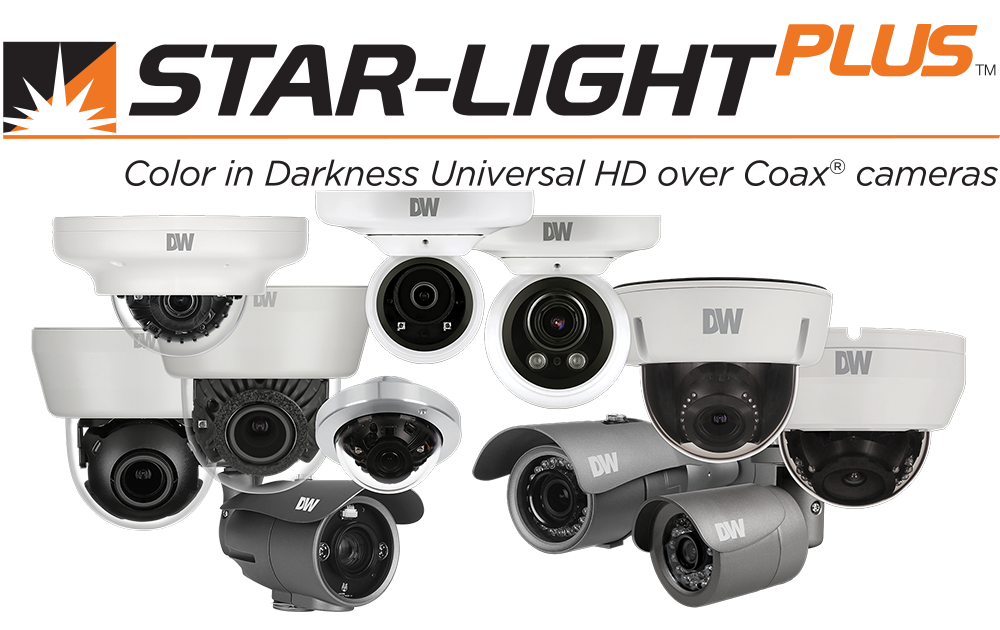

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Universal HD over Coax® Technology

Universal HD over Coax® Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax® cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.

Specifications

Active Pixels 2608 (H) x 1960 (V)
Frequency 60Hz, 50Hz
Image sensor 5MP 1/2.8" CMOS sensor
Maximum resolution 5MP, HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps, HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps, HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fp, HD-Analog, HD-TVI and HD-CVI: 720p @ 30fp, Analog CVBS: Up to 960H @ 30fps
Minimum Scene Illumination in color 0.08 lux (color), 0.0 lux (B/W)
Scanning System Progressive scan
Signal technology Universal HD over Coax® technology, CVBS up to 960H, HD-Analog, HD-CVI, HD-TVI
Test Video Output CVBS video output for testing
Lens
Advanced Lens Features P-iris
Focal Length 2.7mm ~ 13.5mm
Horizontal Field of View (HFOV) 102° ~ 31.4°
IR Distance 100' range Smart IR™
Lens Type Vari-focal Lens
I/O
I/O Alarm in/out 1 output
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Backlight compensation (BLC) Yes
Camera Control Pelco C, UTC
Day and night Auto day/night, Day (color), Night (B/W)
De-fog Yes
Gamma 0.45
Mirror/flip Yes
Motion Detection Yes
Operational features Star-Light Plus, True D/N
Privacy Zones 24 programmable provacy zones
Sharpness Yes
Shutter Mode Auto
Shutter Speed 1/30 ~ 1/30000
Star-Light (sense up) Off, x2-x32
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Environmental
Compliance NDAA Compliance, CE, FCC, RoHS
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately
Mechanical
Camera Dimensions (H X W X D) 4.66" x 3.58" (118.6 x 91 mm), 4.72" x 3.51" (120 x 89.4 mm)
Housing Indoor Dome
Materials Plastic
Weight 0.66 lbs (0.3kg)
Electrical
Power Consumption AC24V (no LED): 2.75W, 114.5mA, AC24V (LED on): 5.3W , 220.8mA, DC12V (no LED): 3.3W, 275mA, DC12V (LED on) : 5.9W, 495mA
Power Requirements 24 V AC, 12V DC
General
Warranty 5 Year Warranty

Accessories

DWC-GPLT
Converter plate for electronic gang box
Learn more
DWC-D1WM
Wall mount bracket for indoor dome cameras
Learn more
