DW-BJRR2PxT

DW-BJRR2PxT Blackjack Rack Enterprise Server | Up to 240TB RAID 5/6 Surveillance Storage | Windows, Linux & Windows Server OS options |Digital Watchdog
Find a Reseller Request a Demo Contact Us FAQs
Features
  • Enterprise-Grade Performance- Dual Intel® Xeon® processors and 32GB RAM deliver powerful processing for high-resolution IP camera environments, supporting up to 420Mbps throughput.
  • Massive Scalable Storage - Offers up to 240TB of raw internal storage with RAID5/6 options, ideal for long-term video retention and high-volume surveillance deployments.
  • Flexible OS Options - Customers can choose between Windows 11, Windows Server, or Ubuntu Linux, all pre-installed on dual 480GB NVMe SSDs in RAID 1 for speed and redundancy.
  • DW Spectrum® Preloaded - Comes ready with DW’s powerful video management software, enabling seamless setup, monitoring, and recording from day one
  • Cloud-Centric Licensing - Includes 8 recording channel licenses that can be converted into 24-month DW Spectrum Enterprise cloud subscriptions, offering flexibility for hybrid deployments.
  • Hot-Swappable Drives & Redundant Power - Designed for maximum uptime, the server features hot-swappable HDDs and dual power supplies to ensure continuous operation even during maintenance.
  • ONVIF Conformance - Supports all ONVIF-compliant IP cameras, ensuring broad compatibility and easy integration into existing systems
  • Remote Management & Monitoring – Enables remote access to system performance, storage, and updates. Reduces overhead and boosts responsiveness—ideal for multi-site deployments and managed service providers.
  • Next-Business-Day On-Site Service - If remote diagnosis fails, DW dispatches certified technicians for on-site hardware repair, minimizing downtime and boosting customer confidence.
  • “Keep Your Hard Drive” Warranty - Customers retain their drives during replacements, ensuring data privacy and security—a major selling point for regulated industries.

Learn about how DW
solutions can work for you

View All Markets

Max throughput and IP camera support

This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 600Mbps throughput.

Next business day onsite hardware repair after remote diagnosis

If an issue occurs with your product that cannot be resolved by phone, DW will dispatch a certified technician to attempt repair of your machine at your place of business, usually the next business day.

Keep your drive after replacement to ensure data security

Our Keep Your Drive Warranty delivers users replacement hard drives, without the need to return the defective drives. Users can keep their drives and protect their data and their customer’s privacy.

DW Spectrum

DW Spectrum is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.

Designed and commissioned in the U.S.A

All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.

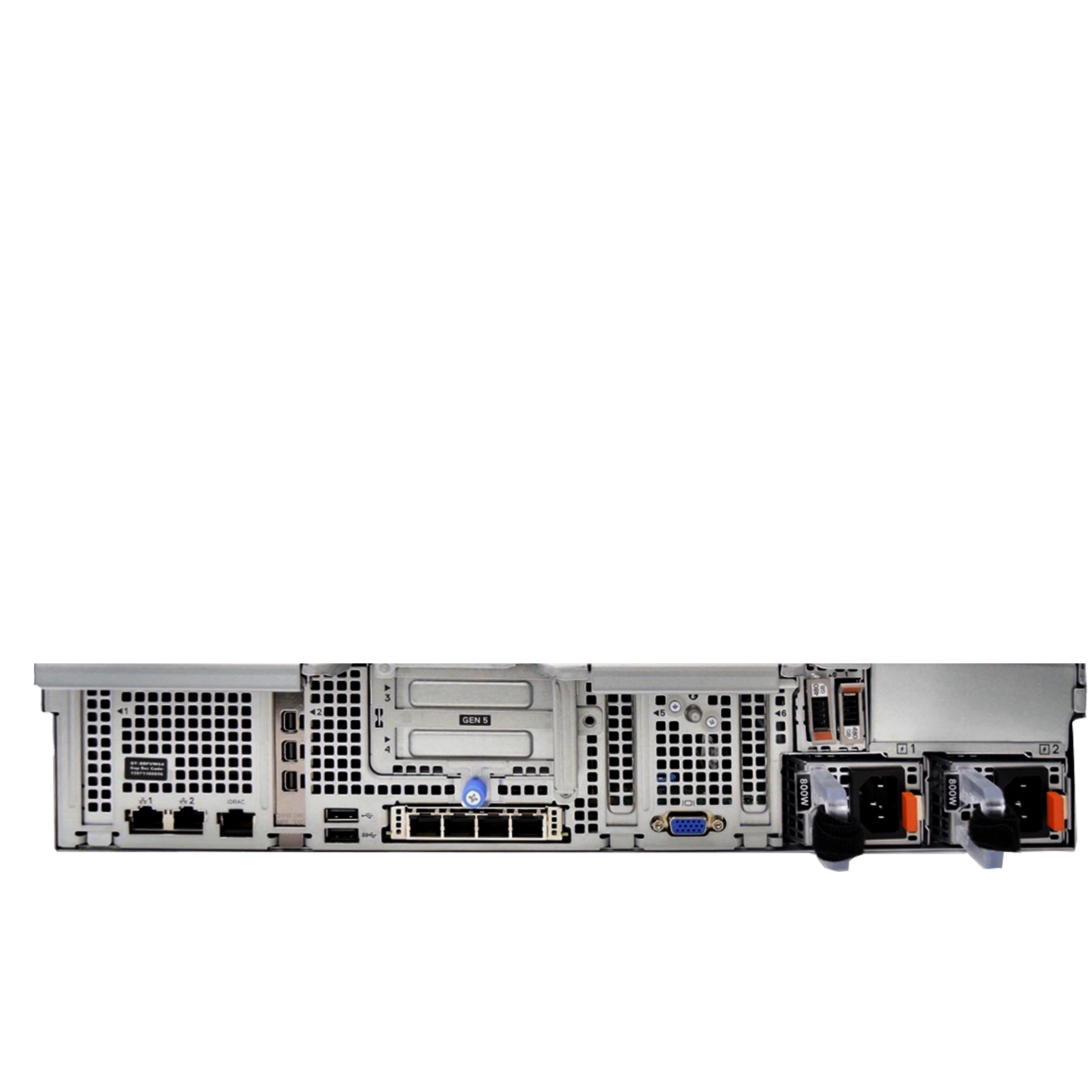

Dual network cards

Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.

Dual power supply

Redundancy for reliability.

Hot-swappable HDDs

When a drive needs to be replaced, you can easily hot-swap it with a new one, while the system is still running. There is no need to power down and lose important minutes of data to maintain your system’s drives healthy and operating.

Specifications

Hardware
CPU Dual Intel Xeon Silver processor
Display Speed Up to 30fps per channel
Local Video Outputs 1x mini Display Port
Mini Display Port to true HD adapter (included)
Memory 32GB
Server's Operating System Windows 11 IoT LTSC (DW-BJRR2P160T, DW-BJRR2P80T, DW-BJRR2P100T, DW-BJRR2P120T, DW-BJRR2P140T, DW-BJRR2P180T, DW-BJRR2P200T, DW-BJRR2P220T, DW-BJRR2P240T, DW-BJRR2P100T6, DW-BJRR2P120T6, DW-BJRR2P140T6, DW-BJRR2P160T6, DW-BJRR2P180T6, DW-BJRR2P200T6, DW-BJRR2P220T6, DW-BJRR2P240T6)
Windows Server 2022 IoT LSTC (DW-BJRR2P160TS, DW-BJRR2P80TS, DW-BJRR2P100TS, DW-BJRR2P120TS, DW-BJRR2P140TS, DW-BJRR2P180TS, DW-BJRR2P200TS, DW-BJRR2P220TS, DW-BJRR2P240TS, DW-BJRR2P100TS6, DW-BJRR2P120TS6, DW-BJRR2P140TS6, DW-BJRR2P160TS6, DW-BJRR2P180TS6, DW-BJRR2P200TS6, DW-BJRR2P220TS6, DW-BJRR2P240TS6)
Linux Ubuntu 22.04 LTS (DW-BJRR2P160TLX, DW-BJRR2P80TLX, DW-BJRR2P100TLX, DW-BJRR2P120TLX, DW-BJRR2P140TLX, DW-BJRR2P180TLX, DW-BJRR2P200TLX, DW-BJRR2P220TLX, DW-BJRR2P240TLX, DW-BJRR2P100TLX6, DW-BJRR2P120TLX6, DW-BJRR2P140TLX6, DW-BJRR2P160TLX6, DW-BJRR2P180TLX6, DW-BJRR2P200TLX6, DW-BJRR2P220TLX6, DW-BJRR2P240TLX6)
Video Card Nvidia Quadro
Video Compression H.264
H.265
OS on SSD 2 x 480GB NVMe SSD (RAID1)
Max throughput (Mbps) RAID5: 600Mbps
RAID6: 420Mbps
Storage
Raw internal storage options 080TB  100TB  120TB  140TB  160TB  180TB  200TB  220TB  240TB
RAID Options OS RAID1
RAID5 (DW-BJRR2P160T, DW-BJRR2P160TLX, DW-BJRR2P160TS, DW-BJRR2P80T, DW-BJRR2P80TLX, DW-BJRR2P80TS, DW-BJRR2P200T, DW-BJRR2P220T, DW-BJRR2P240T, DW-BJRR2P100TLX, DW-BJRR2P120TLX, DW-BJRR2P140TLX, DW-BJRR2P180TLX, DW-BJRR2P200TLX, DW-BJRR2P220TLX, DW-BJRR2P240TLX, DW-BJRR2P100TS, DW-BJRR2P120TS, DW-BJRR2P140TS, DW-BJRR2P180TS, DW-BJRR2P200TS, DW-BJRR2P220TS, DW-BJRR2P240TS, DW-BJRR2P100T, DW-BJRR2P120T, DW-BJRR2P140T, DW-BJRR2P180T)
RAID6 (DW-BJRR2P140TLX6, DW-BJRR2P160TLX6, DW-BJRR2P180TLX6, DW-BJRR2P200TLX6, DW-BJRR2P220TLX6, DW-BJRR2P240TLX6, DW-BJRR2P100TS6, DW-BJRR2P140TS6, DW-BJRR2P160TS6, DW-BJRR2P180TS6, DW-BJRR2P200TS6, DW-BJRR2P220TS6, DW-BJRR2P240TS6, DW-BJRR2P100T6, DW-BJRR2P120T6, DW-BJRR2P140T6, DW-BJRR2P160T6, DW-BJRR2P180T6, DW-BJRR2P200T6, DW-BJRR2P220T6, DW-BJRR2P240T6, DW-BJRR2P100TLX6, DW-BJRR2P120TLX6)
Max HDD Bay 12x SATA HDD
Maximum Storage 80TB (DW-BJRR2P80T, DW-BJRR2P80TLX, DW-BJRR2P80TS)
100TB (60TB, RAID6) (DW-BJRR2P100TS6, DW-BJRR2P100T6, DW-BJRR2P100TLX6)
100TB (80TB, RAID5) (DW-BJRR2P100TS, DW-BJRR2P100T, DW-BJRR2P100TLX)
120TB (80TB, RAID6) (DW-BJRR2P120TS6, DW-BJRR2P120T6, DW-BJRR2P120TLX6)
120TB (100TB, RAID5) (DW-BJRR2P120TS, DW-BJRR2P120T, DW-BJRR2P120TLX)
140TB (100TB, RAID6) (DW-BJRR2P140TS6, DW-BJRR2P140T6, DW-BJRR2P140TLX6)
140TB (120TB, RAID5) (DW-BJRR2P140TS, DW-BJRR2P140T, DW-BJRR2P140TLX)
160TB (140TB, RAID5) (DW-BJRR2P160T, DW-BJRR2P160TLX, DW-BJRR2P160TS)
160TB (120TB, RAID6) (DW-BJRR2P160TS6, DW-BJRR2P160T6, DW-BJRR2P160TLX6)
180TB (140TB, RAID6) (DW-BJRR2P180TS6, DW-BJRR2P180T6, DW-BJRR2P180TLX6)
180TB (160TB, RAID5) (DW-BJRR2P180TS, DW-BJRR2P180T, DW-BJRR2P180TLX)
200TB (180TB, RAID5) (DW-BJRR2P200TS, DW-BJRR2P200T, DW-BJRR2P200TLX)
200TB (160TB, RAID6) (DW-BJRR2P200TS6, DW-BJRR2P200T6, DW-BJRR2P200TLX6)
220TB (200TB, RAID5) (DW-BJRR2P220TS, DW-BJRR2P220T, DW-BJRR2P220TLX)
220TB (180TB, RAID6) (DW-BJRR2P220TS6, DW-BJRR2P220T6, DW-BJRR2P220TLX6)
240TB
240TB (220TB, RAID5) (DW-BJRR2P240TS, DW-BJRR2P240T, DW-BJRR2P240TLX)
240TB (200TB, RAID6) (DW-BJRR2P240TS6, DW-BJRR2P240T6, DW-BJRR2P240TLX6)
VMS features
Playback Functions Calendar
Event search
Smart motion search
Thumbnail search
Timeline
PTZ control ONVIF
Recording Modes Continuous
Motion + low res always
Motion + Object
Motion + Object + Low res
Motion detection
Object + Low res
Object only
System Operation Graphical user interface (GUI)
Remote via DW Spectrum
USB mouse (included)
Network
Ethernet Ports 4 x 1G Ethernet on Expansion board
2x 1G Ethernet (RJ45)
Pre-loaded VMS software DW Spectrum®
Remote Client Cross-platform - Windows, Linux Ubuntu and Mac
DW Mobile+
DW Spectrum Mobile App
Electrical
Power Consumption 800W dual power supply
A UPS is recommended
Redundant power supply
General
Accessories Keyboard
Mouse
Included IP licenses 8 (2xDW-SPECTRUMLSC004)
Operating Temperature and Humidity 20 ~ 90% RH
41 ~ 104 °F (5~40 °C)
Rail kit Included
Recorder Dimensions (H X W X D) 3.41” x 18.97” x 28.4” (86.8 x 482 x 721.62mm)
Recording Licenses (Optional. Sold Separately) Convert each recording license into a 24-month subscription for cloud-centric DW Spectrum Enterprise. Take advantage of cloud-exclusive usability and convenience.
Custom-ordered licenses are available by request.
DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder Licenses
DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder Licenses
DW-SPECTRUMLSC001 - Single DW Spectrum® Recording License
DW-SPECTRUMLSC004 - Four (4) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC010 - Ten (10) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum® Recording Licenses
DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum® Recording Licenses
DW-SPIOLSC001 - Single DW Spectrum® I/O Module License
DW-SPVWALL1X2 - Single DW Spectrum® Video Wall License
Lifetime upgrades are included with no annual renewal fees.
USB interface Yes
Warranty 5 Year Warranty
keep your hard drive
Next business day on-site hardware service (after remote diagnosis)
Weight (barebone, HDD not included) 66 lbs (29.93 kg)
Certification CE  FCC  NDAA  ONVIF Conformant  TAA Compliance  UL Listed
Form Factor Rack mount

Part Numbers

Model #*

Open Drive Bays

Available Storage**

Open Drive Bays

DW-BJRR2P80T
DW-BJRR2P80TLX
DW-BJRR2P80TS

 20TB drives, 8 open drive bays 60TB, RAID5 8
DW-BJRR2P100T
DW-BJRR2P100TLX
DW-BJRR2P100TS		 20TB drives, 7 open drive bays 80TB, RAID5 7
DW-BJRR2P120T
DW-BJRR2P120TLX
DW-BJRR2P120TS		 20TB drives, 6 open drive bays 100TB, RAID5 6
DW-BJRR2P140T
DW-BJRR2P140TLX
DW-BJRR2P140TS		 20TB drives, 5 open drive bays 120TB, RAID5 5
DW-BJRR2P160T
DW-BJRR2P160TLX
DW-BJRR2P160TS		 20TB drives, 4 open drive bays 140TB, RAID5 4
DW-BJRR2P180T
DW-BJRR2P180TLX
DW-BJRR2P180TS		 20TB drives, 3 open drive bays 160TB, RAID5 3
DW-BJRR2P200T
DW-BJRR2P200TLX
DW-BJRR2P200TS		 20TB drives, 2 open drive bays 180TB, RAID5 2
DW-BJRR2P220T
DW-BJRR2P220TLX
DW-BJRR2P220TS		 20TB drives, 1 open drive bay 200TB, RAID5 1
DW-BJRR2P240T
DW-BJRR2P240TLX
DW-BJRR2P240TS		 20TB drives, no open drive bays 220TB, RAID5 ---
DW-BJRR2P100T6
DW-BJRR2P100TLX6
DW-BJRR2P100TS6		 20TB drives, 7 open drive bays 60TB, RAID6 7
DW-BJRR2P120T6
DW-BJRR2P120TLX6
DW-BJRR2P120TS6		 20TB drives, 6 open drive bays 80TB, RAID6 6
DW-BJRR2P140T6
DW-BJRR2P140TLX6
DW-BJRR2P140TS6		 20TB drives, 5 open drive bays 100TB, RAID6 5
DW-BJRR2P160T6
DW-BJRR2P160TLX6
DW-BJRR2P160TS6		 20TB drives, 4 open drive bays 120TB, RAID6 4
DW-BJRR2P180T6
DW-BJRR2P180TLX6
DW-BJRR2P180TS6		 20TB drives, 3 open drive bays 140TB, RAID6 3
DW-BJRR2P200T6
DW-BJRR2P200TLX6
DW-BJRR2P200TS6		 20TB drives, 2 open drive bays 160TB, RAID6 2
DW-BJRR2P220T6
DW-BJRR2P220TLX6
DW-BJRR2P220TS6		 20TB drives, 1 open drive bay 180TB, RAID6 1
DW-BJRR2P240T6
DW-BJRR2P240TLX6
DW-BJRR2P240TS6		 20TB drives, no open drive bays 200TB, RAID6 ---
* Linux OS models have 'LX' at the end of the part number.
* Windows Server OS models have 'S' at the end of the part number.

** RAID5 configuration reduces raw storage size by the equivalent of one (1) HDD size.
** RAID6 configuration reduces raw storage size by the equivalent of two (2) HDDs size.

Purchasing Options

DW Spectrum IPVMS Licensing Options
DW Spectrum Enterprise Subscriptions

Model Number

Description

1-year subscriptions
DWS-ENT12M1C DW Spectrum Enterprise Subscription, 1 device, 12 months
DWS-ENT12M4C DW Spectrum Enterprise Subscription, 4 devices, 12 months
DWS-ENT12M8C DW Spectrum Enterprise Subscription, 8 devices, 12 months
DWS-ENT12M16CDW Spectrum Enterprise Subscription, 16 devices, 12 months
DWS-ENT12M24CDW Spectrum Enterprise Subscription, 24 devices, 12 months
DWS-ENT12M48CDW Spectrum Enterprise Subscription, 48 devices, 12 months
3-year subscriptions
DWS-ENT36M1C DW Spectrum Enterprise Subscription, 1 device, 36 months
DWS-ENT36M4C DW Spectrum Enterprise Subscription, 4 devices, 36 months
DWS-ENT36M8C DW Spectrum Enterprise Subscription, 8 devices, 36 months
DWS-ENT36M16C DW Spectrum Enterprise Subscription, 16 devices, 36 months
DWS-ENT36M24C DW Spectrum Enterprise Subscription, 24 devices, 36 months
DWS-ENT36M48C DW Spectrum Enterprise Subscription, 48 devices, 36 months

Documents

Title Type
Blackjack Brochure
pdf Download
Blackjack Rack sell sheet
pdf Download
DW-BJRR2P datasheet - French
pdf Download
DW-BJRR2P datasheet - Spanish
pdf Download
DW-BJRR2P datasheet
pdf Download
DW-BJRR2U/P CAD drawing
dwg Download
DW-BJRR2P AE specifications
doc Download
Blackjack Rack quick setup guide
pdf Download
Blackjack Rack support guide
pdf Download
