VMAX IP G4 8-channel PoE NVR with 4 bonus channels
  • Complete installation, setup and camera configuration in minutes!
  • CCIP™ system encryption via TLS protects your surveillance system from out of network attacks
  • Record and manage single-sensor IP cameras at real-time 30fps up to 4K (3840×2160), with 80Mbps maximum throughput
  • Local power for up to 8 IP cameras via resident PoE+ switch
  • DW Witness™ turns a smartphone or tablet into a surveillance camera
  • PathFinder™ easy end-to-end remote connection with NAT Traversal (STUN/TURN) support
  • Automatic device discovery
  • Compatible with ONVIF cameras
  • 0-32TB storage options
  • Transfer real-time data using Real Time Streaming Protocol (RTSP)
  • Snapshot Notify™: Interval camera image verification sent to an email
  • Remote management with C3™ CMS for Windows® and Mac®®
  • Event camera group recording
  • System analysis with real-time system, PoE and network status monitoring
  • Event notifications via email, text and C3™ CMS and push notifications to mobile devices
  • Mobile Application for iOS® and Android® devices
  • Dual-stream recording
  • Show More

4K Recording Resolution

DW's recorders deliver crystal clear images in any resolution. Higher resolution offers forensic details with zooming into the camera's field of view.


Easy and secure remote connection with NAT Traversal (STUN/TURN) support without opening ports.
Learn More.

CCIP™ System Encryption

The CCIP™ (Closed Circuit IP) encryption is activated when the VMAX IP G4™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time using TLS, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting recorder.
See all compliant cameras.


C3™ CMS takes video management to the next level. You are in complete command to control all your video surveillance systems in one intuitive interface. Easy-to-program alerts let you take action in real-time and manage the health of your devices.
Learn More.

DW Witness™ App

The DW Witness™ app for iOS® and Android® instantly turns your smartphone or tablet into a video surveillance camera. Press the button on the app and start transmitting live video to your VMAX IP G4™ NVR. It’s a “black box” for personnel on patrol.

Push notifications via DW Mobile Plus App

DW’s recorders can send an event notification to your mobile device via the DW Mobile Plus app.

Real-Time Streaming Protocol (RTSP)

RTSP provides a live video stream for live streaming applications between DW VMAX® G4 recorders and third-party software applications. RTSP streams offer a secondary backup location for recorded video and smart home integration, an alternative for ONVIF integration and a way to broadcast a stream to live streaming services, such as CCTV live monitoring in animal sanctuaries and public cameras.

Status Monitoring

A real-time graphical representation of all system connections. Receive connection alerts via email or text.


Display Modes 1, 12, 4, 6, 9, Sequence
Display Speed Up to 30fps per channel
Local Video Output Resolution 1024x768, 1280x1024, 1280x720, 1920x1080, 2560x1440, 800x600, 3840×2160 (4K)
Local Video Outputs True HD, VGA
Max Supported Recording Resolution 4K (3840×2160)
Video Compression H.264, H.265
Max throughput (Mbps) 80Mbps
Input channels 12 Channels, 8 PoE channels
Raw internal storage options 002TB  004TB  006TB  008TB  010TB  012TB  016TB  020TB  032TB  No Local Storage
RAID Options No RAID
Max HDD Bay 2 x SATA HDD
Maximum Storage 10TB (DW-VG41210T8P), 12TB (DW-VG41212T8P), 16TB (DW-VG41216T8P), 2TB (DW-VG4122T8P), 4TB (DW-VG4124T8P), 6TB (DW-VG4126T8P), 8TB (DW-VG4128T8P), 20TB (DW-VG41220T8P), 32TB (DW-VG41232T8P), No storage (DW-VG4128P)
Alarm in/out 1 alarm output, 4 alarm inputs
Audio in/out 1 input, 1 output
Performance features Camera Color Control, CCIP, Covert Channel, Digital Zoom in live and playback, Import and export settings, PoE built-in, Quick Setup under 3 Minutes, Real-time temp alert
Playback Functions Calendar, Event search, Smart motion search, Thumbnail search, Timeline
Playback speed x1, x16, x2, x32, x4, x64, x8, x99
Post-recording 0~5 minutes
Pre- recording 0~5 seconds
PTZ control RS485, UTC
Recording Modes Continuous, Emergency, Motion detection, Pre- and post-alarm, Quick backup, Scheduled, Sensor
Recording Resolution and Recording Rate Up to 3840×2160 (4K): 360fps
System Operation Graphical user interface (GUI), Joystick Controller (optional), USB mouse (included)
Backup Local backup via USB, Network backup via CMS
Ethernet Ports 1x 1G Ethernet (RJ45)
Firmware Upgrade CMS over network, FTP, USB
Protocol DDNS, DHCP, RTSP, Static fixed IP, uPNP
System recovery after power failure Auto-reboot and journaling file system
Transmission speed live Up to 3840×2160 (4K): 360fps
Network Remote Software DW VMAX Plus App, C3 CMS, DW Mobile Plus, DW Witness
Maximum Power per Port Up to 30W
Power Consumption 120W total power budget (recorder + PoE ports)
Power Requirements 48V DC, 2.5A
Total PoE Power Budget 12W per PoE port, 96W
Accessories Mouse
Operating Temperature and Humidity 10~90% RH, 32~113 °F (0~45 °C)
Rail kit DW-G419RE (optional. Sold separately)
Recorder Dimensions (H X W X D) 14.96" x 10.58" x 1.77" (380 x 268.8 x 45 mm)
Serial ports RS485
USB interface Yes
Warranty 5 Year Limited Warranty
Weight (barebone, HDD not included) 3.74 lbs (1.69 kg)
Certification CE  FCC  NDAA Compliance  TAA Compliance
Form Factor Embedded

Part Numbers

Model #

Storage Size

DW-VG4128P 12CH, no HDD, 8PoE
DW-VG4122T8P 12CH, 2TB storage, 8PoE
DW-VG4124T8P 12CH, 4TB storage, 8PoE
DW-VG4126T8P 12CH, 6TB storage, 8PoE
DW-VG4128T8P 12CH, 8TB storage, 8PoE
DW-VG41210T8P 12CH, 10TB storage, 8PoE
DW-VG41212T8P 12CH, 12TB storage, 8PoE
DW-VG41216T8P 12CH, 16TB storage, 8PoE
DW-VG41220T8P 12CH, 20TB storage, 8PoE
DW-VG41232T8P 12CH, 32TB storage, 8PoE


19in rack mount ears
Learn more
System Control Keyboard
Learn more
PoE switch - 4 channels
Learn more
PoE switch - 8 channels
Learn more


Title Type
DW-VG412 A&E Specifications
docx Download
DW-VG412 datasheet - French
pdf Download
DW-VG412 datasheet - Spanish
pdf Download
DW-VG412 CAD drawing
dwg Download
VMAX IP G4 user manual
pdf Download
DW-VG412 datasheet
pdf Download
VMAX IP G4 brochure
pdf Download
VMAX IP G4 network setup 12- and 16-channel
pdf Download
VMAX IP G4 quick setup guide
pdf Download
DW Accessories Chart
pdf Download


Title Type Release Notes Version Update Date Compatibility Size
DW IP Finder v4.4.23 for Windows OS exe 07/01/2024 27.80 MB Download
DW IP Finder v4.4.22 for Linux OS run v4.4.22 01/18/2024 46.00 MB Download
DW IP Finder v4.4.22 for Windows OS exe v4.4.22 01/18/2024 27.76 MB Download

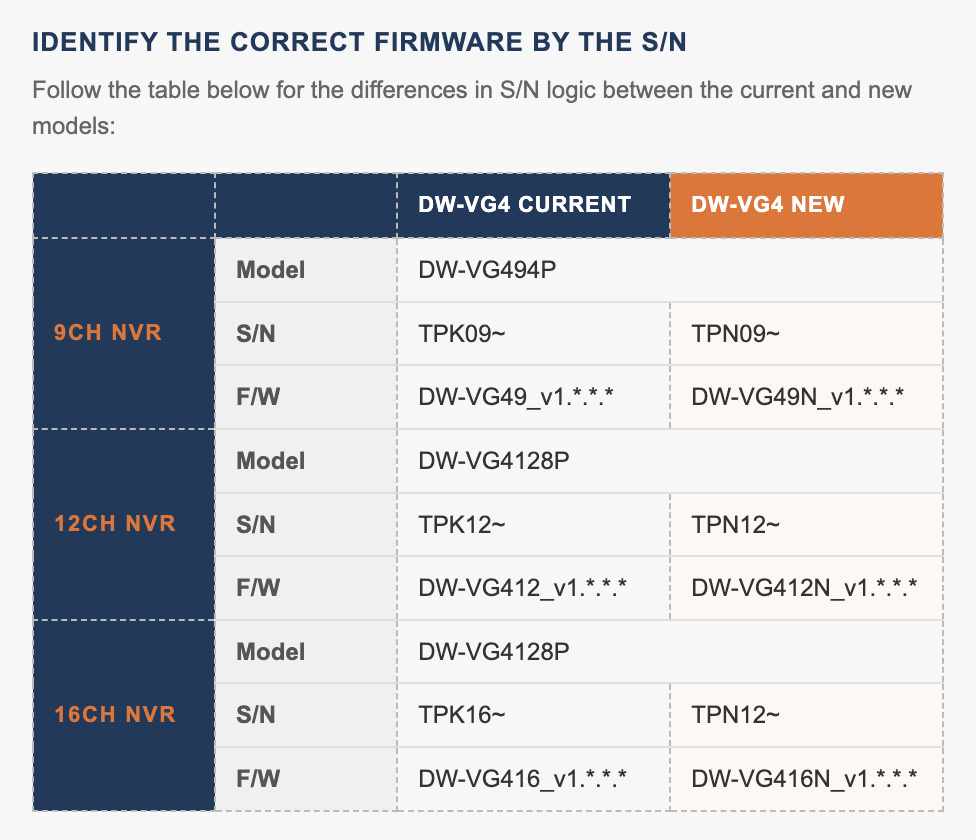

DW-VG412 firmware v1.5.4.3 bin v1.5.4.3 08/23/2023 46.65 MB Download
C3 CMS v1.1.4.85 update 2 for Windows zip v1.1.4.85 update 2 05/03/2023 210.90 MB Download
C3 CMS v1.1.4.83 for Mac zip v1.1.4.83 09/09/2022 68.17 MB Download
