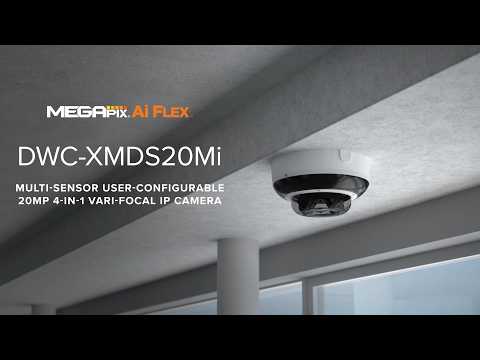

DWC-XMDS20Mi

MEGApix Ai, 20MP, Multi-Sensor, 4x Varifocal Lenses, 4-in-1 Flexible Panoramic IP Camera with Edge-AI and IR | DW Intelligent Surveillance Solutions
Features
  • Four sensors can be positioned flexibly along a magnetic track, allowing end users to customize exactly where each camera points—ideal for irregular or evolving layouts.
  • Delivers exceptionally clear images even in near‑dark conditions thanks to Star‑Light Plus™ low‑light technology, improving visibility and security at night.
  • Built‑in AI detects, classifies, and tracks people and objects automatically, reducing manual monitoring and ensuring critical activity is never missed.
  • Allows the creation of up to 40 custom detection zones, enabling users to focus on the areas that matter most and minimize unnecessary alerts.
  • Captures 360° or 180° panoramic coverage, reducing blind spots and minimizing the number of cameras needed for full‑area monitoring.
  • Flexible Deployment Options: Supports wall, ceiling, and pendant mounting, offering versatile installation for various environments and layouts.
  • Motorized vari‑focal lenses with autofocus ensure sharp images at all times, even when focal lengths change—ideal for adjusting coverage remotely.
  • Two-way audio enables real‑time communication, allowing monitoring staff to intervene, assist, or warn intruders immediately.
  • Rugged IP67 and IK10 housing ensures long‑term durability indoors or outdoors, reducing maintenance and replacement costs.
  • NDAA/TAA Compliance: Meets federal procurement standards and backed by a 5-year warranty, making it suitable for government and critical infrastructure deployments.

Object Classification

DW's Ai software processes video streams to detect and classify every object appearing in the detection zone. Our AI-based engines perform object detection, automatically classifying the objects in the scene: people, cyclists, cars, buses and vans, trucks, motorcycles, bicycles and bags.

Wide tilting angle

Each lens module has a total tilt angle of up to 80°, thanks to its aspherical hemispherical surface. The wide mounting angle reduces blind spots in the camera’s field of view.

Versatile installation

A single Flex™ camera can replace multiple single-sensor cameras with great ROI. With a variety of lens arrangements and positioning, the camera can enhance any application and cover any area needed with no blind spots.

Magnetic track flexibility

The camera’s unique magnetic track allows four individual lens modules to be placed in almost any possible configuration. A fifth, vertical, top view position in the center of the camera offers complete coverage and field of view control.

Next Generation IR Technology

The camera’s IR LEDs are placed separately from the lens, under a smoked cover. The result is a clear B/W image in any lighting and weather conditions, with no IR reflection or IR hotspots.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Reduce false alarms

DW’s Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Specifications

Active Pixels 4x 2592 (H) x 1944 (V)
Frequency 50Hz
Image sensor 4x 1/2.8" 5.69MP sensor
Star-Light Plus™ sensor
Maximum resolution 20MP
Minimum Scene Illumination in color 0.0 lux (B/W)
0.10 lux (color)
Scanning System Progressive scan
Test Video Output Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels 4x 2704(H) X 2104(V)
Lens
Advanced Lens Features Auto focus
Motorized zoom
P-iris
Focal Length 2.8mm ~ 8.0mm (x4)
Horizontal Field of View (HFOV) 4x 51° ~ 93°
Illumination Distance 100' range Smart IR™
Lens Type Vari-focal Lens
Vertical Field of View (VFOV) 39°~68° (x4)
I/O
Event triggers Illegal login
Motion Alarm
Network disconnection
Schedule
Sensor detection
Temperature anomaly
I/O Alarm in/out 1 input
1 output
I/O Audio in/out *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended.
1 input (1.0Vms, 3K ohm)
1 output
Intelligent Video Analytics
Analytics filters Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Auto day/night
Day (color)
Night (B/W)
De-fog Yes
Memory slot 4x Micro SD/SDHC/SDXC class 10 cards (cards not included)
Up to 1TB micro SD / FAT32
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Alarm output activation
Email
FTP server
Privacy Zones 16 programmable privacy masks
Sharpness Yes
Shutter Mode Anti-Flicker
Auto
Manual
Slow Shutter
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off
x10
x2
x3
x5
x6
x7.5
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP IPv4
LAN 1000Base-T (1Gbps)
Network resolution 4. H.264: 2592x1944 2560x1440 1920x1080 704x576 704x480 640x480 640x360 352x288 352x240
4x MJPEG: 1920x1080, 1280x720, 800x600, 768x432, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240
Network Web Viewer Google Chrome® browser
Linux® OS
Mac® OS
Microsoft Edge® browser
Mozilla Firefox® browser
Safari® browser
Windows OS
Protocol DDNS
DHCP
DNS
FTP
HTTP
HTTPs
ICMP
NTP
ONVIF
RTP (UDP/TCP)
RTSP
SMTP
SNMPv1/v2/v3 (MIB-2)
SSL
TCP/IP
UDP
Zeroconf (AutoIP)
Security 802.1x
Digest authentication (ID/PW)
HTTPS (TLS)
IP filtering
Stream Speed Up to 30fps at all resolutions
Streaming Capability 4x Triple Streaming (3rd stream MJPEG only)
Video Bitrate 100Kbps~10Mbps, multi-rate for preview and recording per channel
Video Compression Type H.264
H.265
MJPEG
Video Management Software Any ONVIF conformant CMS
DW Spectrum®
Environmental
Camera Operating Temperature -22°F ~ 122°F (-30°C ~ 50°C)
Camera Startup Temperature -22°F ~ 122°F (-30°C ~ 50°C)
Compliance CE  FCC  NDAA Comp  ONVIF  TAA Compliance  UL Listing
Environmental Operating Humidity 10-90% (non-condensing)
Mounting Accessories (Required/Optional) Required. Sold separately
Mechanical
Camera Dimensions (H X W X D) 11.04" x 4.96" (280.5 x 126.2mm)
Camera Weight 7.7 lbs (3.5 kg)
Housing Panoramic
Housing Color White
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) 10M
Cable type #18
Power Requirements High power PoE injector included
PoE
General
Warranty 5 Year Warranty
