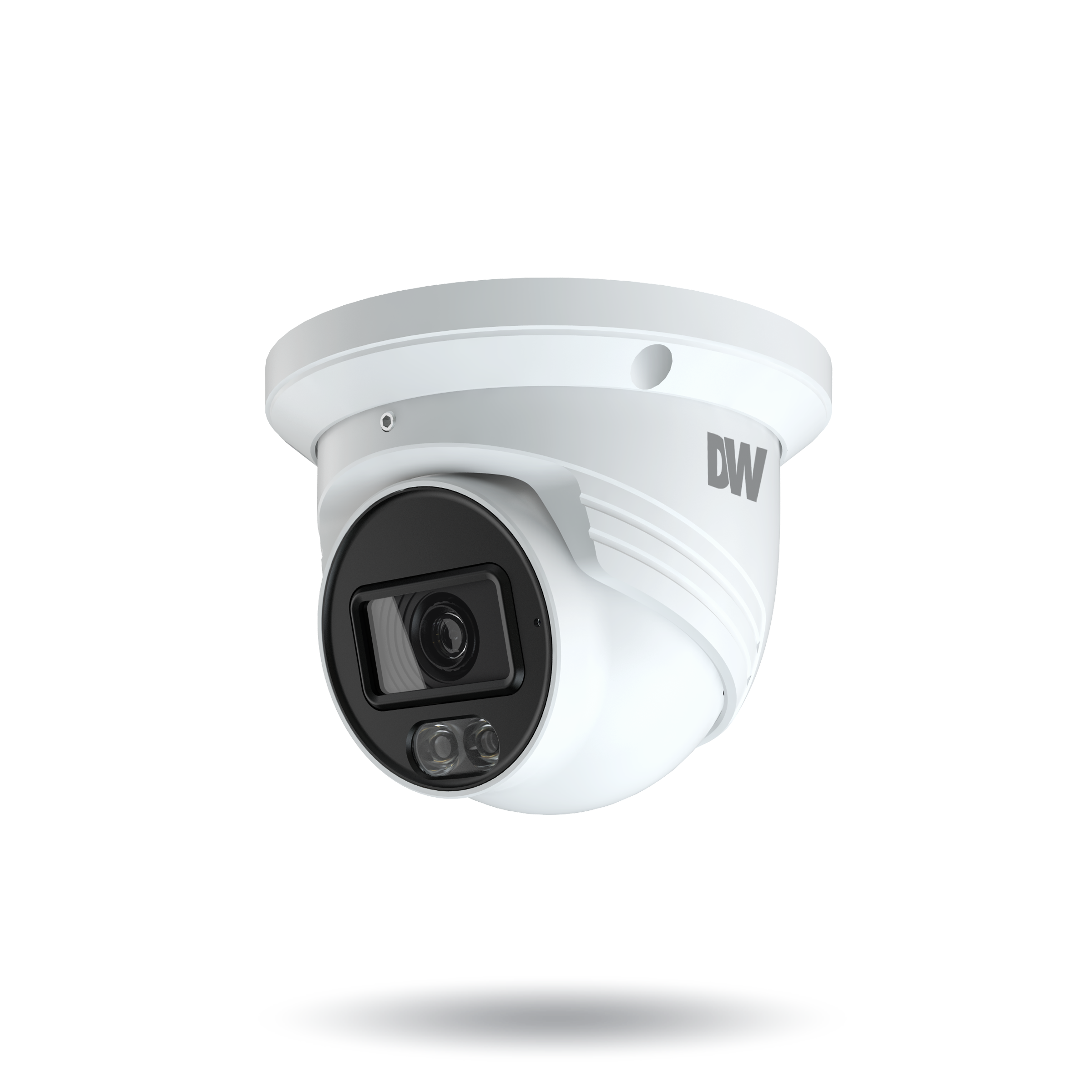

DWC-MT95WW28TW

MEGApix 5MP turret IP camera with fixed lens and white light LEDs
NDAA


Features
  • 5MP 1/2.7 image sensor at real-time 30fps
  • 2.8mm fixed lens
  • True Wide Dynamic Range (WDR)
  • Multiple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
  • 100ft range White-Light LEDs
  • Object classification video analytics
  • Line crossing video analytics
  • Perimeter intrusion video analytics
  • Video tampering with scene change detection video analytics
  • Video tampering with video blur detection video analytics
  • Video tampering with abnormal color detection video analytics
  • Smart DNR 3D digital noise reduction
  • True day/night with mechanical IR cut filter
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • De-Fog extreme weather image compensation
  • Show More

White light LEDs built-in

Create deterrence and provide crystal-clear images in color without the need for external illumination or the potential loss of color and detail from B/W images.

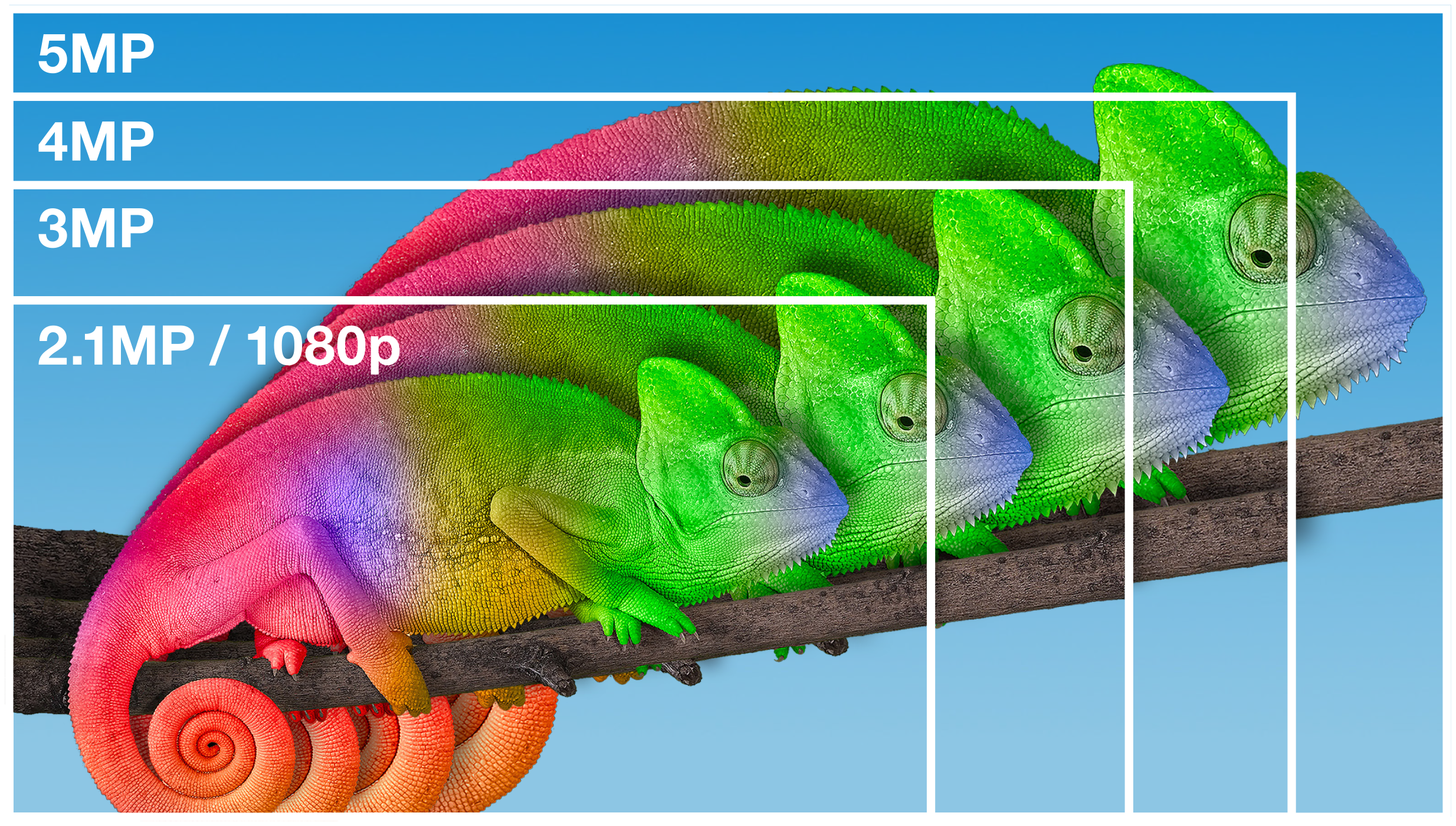

Megapixel resolution

DW’s technology delivers crystal clear images in any resolution. Higher-resolution offers forensic details with zooming into the camera’s field of view.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

Specifications

Maximum resolution 5MP, 5MP 1/2.7" CMOS sensor
Minimum Scene Illumination in color 0.0 lux (B/W)
Signal technology HD-TVI
Total Pixels 2592 (H) × 1944 (V)
Lens
Focal Length 2.8mm
Horizontal Field of View (HFOV) 94.8°
IR Distance 2 white light LEDs, 98ft range
Lens Type Fixed Lens
I/O
Audio compression G.711
I/O Audio in/out 1 input, 1 microphone built-in, *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended.
Operational
3D digital noise reduction 3D DNR
Auto gain control Auto
Backlight compensation (BLC) Yes
Day and night Auto day/nighy, Day (color), Night (B/W)
De-fog Yes
Memory slot Micro SD/SDHC/SDXC class 10 card (card not included)
Mirror/flip Yes
Motion Detection Yes
Operational features True D/N
Operational Notifications Email, FTP server
Privacy Zones 4 programmable privacy masks
Sharpness Yes
Shutter Mode Auto, Manual
Shutter Speed 1/30 ~ 1/100000
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP IPv4, IPv6
LAN 802.3 compliance 10/100 LAN
Network resolution 5MP, 4MP, 2K, 3MP, 2.1MP/1080P, 720P (60Hz: 1 ~ 30fps; 50Hz: 1~25fps), Sub-stream: 720P, D1, CIF, 480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps), Third stream: D1, CIF, 480×240 (60Hz: 1 ~ 30fps; 50Hz: 1~25fps)
Network Web Viewer Windows® OS, Internet Explorer® browser
Protocol 802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPs, ICMP, IGMP, NTP, ONVIF, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Security IP filtering, MAC filtering, Digest authemtication (ID/PW)
Stream Speed Up to 30fps at all resolutions
Streaming Capability Dual-stream at different rates and resolutions
Video Bitrate 64Kbps~8Mbps
Video Compression Type H.264, H.265, MJPEG
Video Management Software DW Spectrum® IPVMS, Any ONVIF conformant CMS
Environmental
Compliance NDAA Compliance, CF, FCC, RoHS, ONVIF
Environmental Operating Humidity 0-95% RH (non–condensing)
Environmental Operating Temperature -22°F ~ 140°F (-30°C ~ 60°C)
Mechanical
Dimensions 4.66" x 3.58" (118.6 x 91 mm)
Housing Turret
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting
Weight 1.01 lbs (0.46 kg)
General
Power Consumption DC12V: max 7.0W, 583.3mA, PoE: max 7.0W
Power Requirements 12 V DC, PoE, IEEE 802.3af Class 3, (Adapter not included)
Warranty 5 Year Warranty

Accessories

DWC-MT9CMJ
Ceiling mount bracket and junction box for fixed lens T9 turret cameras
Learn more
DWC-MT9JUNC
Junction box for fixed lens T9 turret cameras
Learn more
DWC-MTTWM
Wall mount for fixed lens turret and vandal dome cameras
Learn more

Documents

Title Type
Camera part numbering system
pdf Download
DW Accessories Chart
xlsx Download
DWC-MT95WixTW user manual
pdf Download
DWC-MT95WW28TW AE Specifications
doc Download
DWC-MT95WW28TW CAD Drawing
dwg Download
DWC-MT95WW28TW Datasheet
pdf Download
DWC-MT95WW28TW Datasheet - French
pdf Download
DWC-MT95WW28TW Datasheet - Spanish
pdf Download
DWC-MT95WW28TW Quick Setup Guide
pdf Download
MEGApix Single-Sensor Brochure
pdf Download
MEGApix White Light Brochure
pdf Download

Software

Title Type Release Notes Version Upload Date Compatibility Size
Analytics Plugin for DWC-MT95WW28TW zip 10/20/2022 DWC-MT95WW28TW 0.00 MB Download
DW IP Finder v4.4.15 for Linux OS run v4.4.15 09/28/2022 47.98 MB Download
DW IP Finder v4.4.16 for Windows OS exe - v4.4.16 11/17/2022 Windows OS 27.64 MB Download
DWC-MT95WW28TW firmware v5.1.1.0(26101) tar v5.1.1.0(26101) 09/06/2022 DWC-MT95WW28TW 32.00 MB Download
