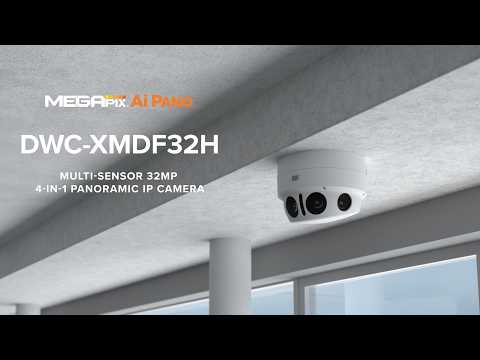

DWC-XMDF32H

MEGApix Ai panoramic 32MP multi-sensor IP camera with 9.0mm fixed lenses
Features
  • Ultra-High Resolution: Capture expansive scenes in stunning detail with 32MP resolution and four 8.48MP sensors, ensuring forensic-level clarity for critical surveillance applications.
  • Delivers exceptionally clear images even in near‑dark conditions thanks to Star‑Light Plus™ low‑light technology, improving visibility and security at night.
  • Built‑in AI detects, classifies, and tracks people and objects automatically, reducing manual monitoring and ensuring critical activity is never missed.
  • Allows the creation of up to 40 custom detection zones, enabling users to focus on the areas that matter most and minimize unnecessary alerts.
  • 180° Panoramic Coverage: Eliminate blind spots with seamless 180° horizontal views, ideal for monitoring wide areas like parking lots, campuses, and large facilities.
  • Flexible Deployment Options: Supports wall, ceiling, and pendant mounting, offering versatile installation for various environments and layouts.
  • True WDR delivers clear images in bright, backlit, or high‑contrast scenes, ensuring reliable identification in challenging lighting.
  • Two-way audio enables real‑time communication, allowing monitoring staff to intervene, assist, or warn intruders immediately.
  • Rugged IP67 and IK10 housing ensures long‑term durability indoors or outdoors, reducing maintenance and replacement costs.
  • NDAA/TAA Compliance: Meets federal procurement standards and backed by a 5-year warranty, making it suitable for government and critical infrastructure deployments.

32MP 4-sensor cameras

Get wide views and forensic details from one camera. The MEGApix Pano 32MP 4-sensor cameras produce 180° views at real-time 30fps via a single PoE Plus connection.

The most effective way to for wide-area surveillance

When comparing overall system cost, these may be the most cost-effective cameras you can buy because they do more from a single installation, reducing all related costs, such as cabling and labor.

Easy image stitching

All DW’s multi-sensor panoramic cameras use three or four sensors. The camera then merges the individual sensor’s image into a 180° view, stitched automatically by selecting the auto-alignment option from the camera’s settings.

Object Classification

DW's Ai software processes video streams to detect and classify every object appearing in the detection zone. Our AI-based engines perform object detection, automatically classifying the objects in the scene: people, cyclists, cars, buses and vans, trucks, motorcycles, bicycles and bags.

Easy setup (no manual analytics calibration)

DW’s Ai allows operators to choose what to detect and where; with a user-friendly and straightforward UI, users can set up multiple scenarios specific to their monitoring needs without complex calibration.

Optimized Ai for the edge

MEGApix Ai's analytics engine is especially designed for the edge, working on the camera side to substantially reduce bandwidth consumption and accelerate response times.

AI-Based Analytics

DW’s Ai intelligent algorithms offer better object detection and identification of environmental elements. The result is a substantial reduction in false alarms for control room operators and security personnel. Allowing only valid events to filter through increases efficiency and productivity, and reduces unnecessary costs.

Ai Analytics Rules

DW Ai solutions include object and person detection, classification, and tracking, as well as specialty plugins for vehicle details detection and tracking.

Reduce false alarms

DW’s Ai accurately categorizes moving objects and people, distinguishing them from environmental items such as spiders, shaking shadows and moving lights. The result is a reduction in false alarm rates, saving storage and enabling more efficient monitoring.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Specifications

Active Pixels 4x 3840 (H) x 2160 (V)
Frequency 50Hz
Image sensor 4x 1/1.8" 8.48MP sensor
Star-Light Plus™ sensor
Maximum resolution 32MP
Minimum Scene Illumination in color 0.007 lux (B/W)
0.13 lux (color)
Scanning System Progressive scan
Test Video Output Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total Pixels 4x 3856(H) X 2200(V)
Lens
Focal Length 9.0mm (x4)
Horizontal Field of View (HFOV) 46° per image, 180° total (32MP)
Illumination Distance NA
Lens Type Fixed Lens
Vertical Field of View (VFOV) 27.1°
I/O
Event triggers Illegal login
Motion Alarm
Network disconnection
Schedule
Sensor detection
Temperature anomaly
I/O Alarm in/out 1 input
1 output
I/O Audio in/out *Cameras provide a line level audio. The use of amplified microphones and speakers is recommended.
1 input (1.0Vms, 3K ohm)
1 output
Intelligent Video Analytics
Analytics filters Zones and lines, tamper, metadata, intrusion, line crossing, counting, counting lines, appear, disappear, stopped, enter, exit, direction, tailgating, dwell, logical rules
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Day and night Auto day/night
Day (color)
Night (B/W)
De-fog Yes
Memory slot 4x Micro SD/SDHC/SDXC class 10 cards (cards not included)
Up to 1TB micro SD / FAT32
Mirror/flip Yes
Motion Detection Yes
Operational Notifications Alarm output activation
Email
FTP server
Privacy Zones 16 programmable privacy masks
Sharpness Yes
Shutter Mode Anti-Flicker
Auto
Manual
Slow Shutter
Shutter Speed 1/15 ~ 1/32000
Slow Shutter Speed Off
x10
x2
x3
x5
x6
x7.5
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Network
Bitrate Control Multi-streaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IP IPv4
LAN 1000Base-T (1Gbps)
Network resolution 4x H.264: 3840x2160, 2560x1440, 1920x1080, 1280x720, 704x576, 704x480, 640x360, 352x288, 352x240
4x H.265: 3840x2160, 2560x1440, 1920x1080, 1280x720, 704x576, 704x480, 640x360, 352x288, 352x240
4x MJPEG: 1920x1080, 1280x720, 768x432, 704x576, 704x480, 640x360, 352x288, 352x240
Network Web Viewer Google Chrome® browser
Linux® OS
Mac® OS
Microsoft Edge® browser
Mozilla Firefox® browser
Safari® browser
Windows OS
Protocol DDNS
DHCP
DNS
FTP
HTTP
HTTPs
ICMP
NTP
ONVIF
RTP (UDP/TCP)
RTSP
SMTP
SNMPv1/v2/v3 (MIB-2)
SSL
TCP/IP
UDP
Zeroconf (AutoIP)
Security 802.1x
Digest authentication (ID/PW)
HTTPS (TLS)
IP filtering
Stream Speed Up to 30fps at all resolutions
Streaming Capability 4x Triple Streaming (3rd stream MJPEG only)
Video Bitrate 100Kbps ~ 25Mbps, multi-rate for preview and recording
Video Compression Type H.264
H.265
MJPEG
Video Management Software Any ONVIF conformant CMS
DW Spectrum®
Environmental
Compliance CE  FCC  NDAA Comp  ONVIF  TAA Compliance  UL Listing
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -22°F ~ 122°F (-30°C ~ 50°C)
Mounting Accessories (Required/Optional) Required. Sold separately
Mechanical
Camera Dimensions (H X W X D) 8.26" x 5.15" (210 x 131mm)
Camera Weight 6.6 lbs (3 kg)
Housing Panoramic
Housing Color White
IK rating IK10 Rated
IP rating Weather Resistant (IP67)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) 15M
Cable type #18
Power Requirements High power PoE injector included
PoE
General
Warranty 5 Year Warranty
